3M™ Serial Advanced Technology Attachment (SATA) Connector, 5622 Series, 5622-2103-ML
- 3M ID 7010506873
Details
Highlights
- 22-position signal and power combination
- Input/output connector for backplane applications
- EMLB contacts for "hot swap"
- Blind mate polarization for easy cable attach
- Capable of accepting HDD fitted with SATA header
- Meets SATA Specification 1.0a
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
- For more information, refer to Customer Drawing 78-5100-2202-9

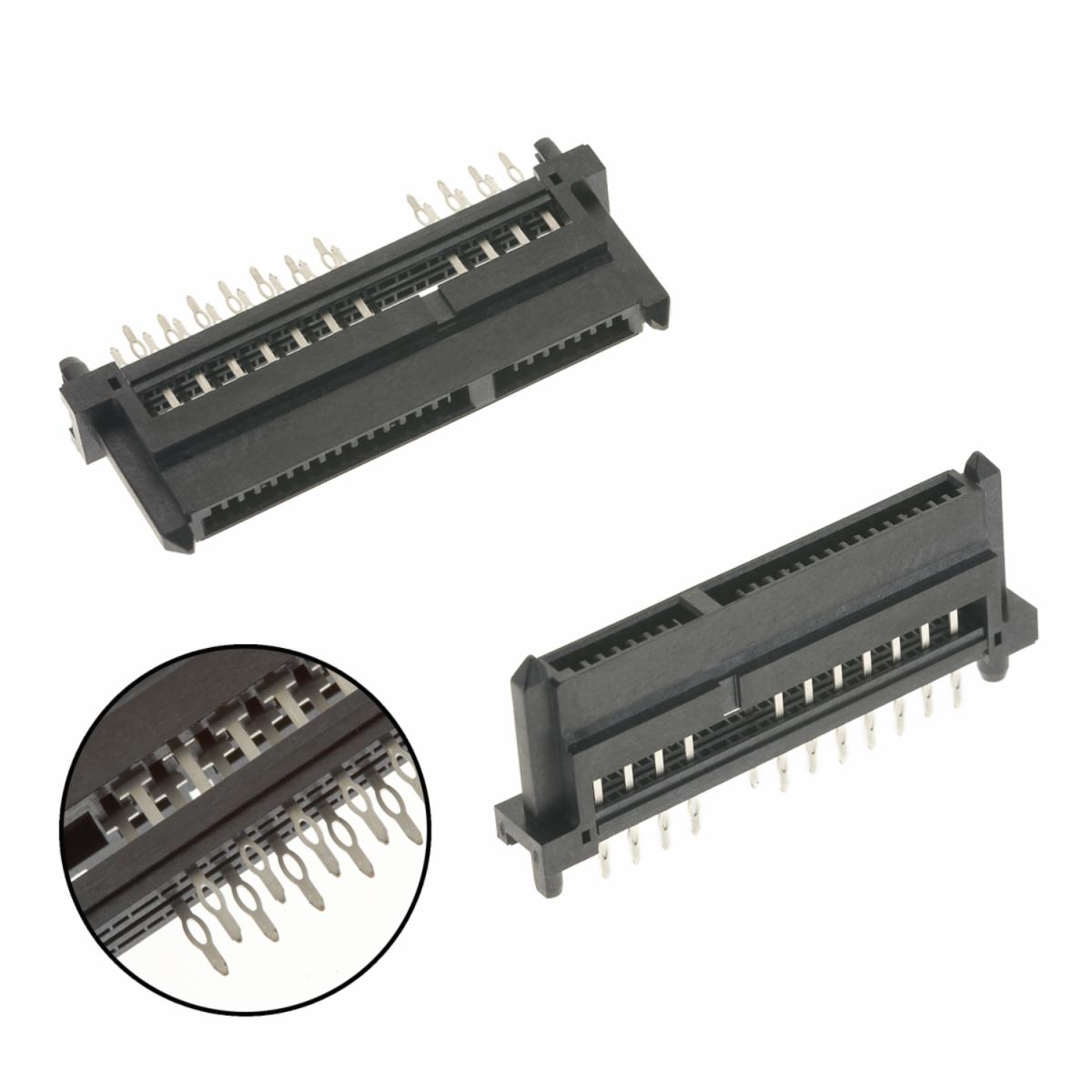

Host Receptacle, Vertical, Elevated Pressfit and Through-Hole Receptacle
Specifications
| Brands | 3M™ |
| Connector Style | Receptacle |
| Current Rating | 1.5 |
| Features | Board Guide |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 762 μm |
| Number of Contacts | 22 |
| Orientation | Vertical |
| PCB Mounting Style | Through Hole |
| Packaged Form | Tray |
| Product Series | 5622 |
| Tech Sheet Number | TS-2202 |
| Termination Method | Solder |
| Withstanding Voltage | 500 Vrms at Sea Level |
Resources

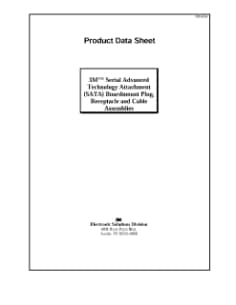

3M™ Serial Adv Tech Attch.(SATA)BM Plug, Recep&Cable AsmData Sheets
