3M™ QT-II PILC Cable Silicone Rubber Termination Kit 5804-Pb, PILC Cable, 15 kV, 1.20-1.90 in (30,5-48,3 mm) Cable Insul. O.D., 1 termination/kit
- 3M ID 7100164404
Details
Highlights
- Provides a void-free seal to oil/paper-insulated, lead-covered power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Termination has 1.20 to 1.90-in insulation O.D
- Accommodates wire sizes of 750 to 1250 kcmil at 15kV
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages up to 15kV and is 110 kV BIL-rated

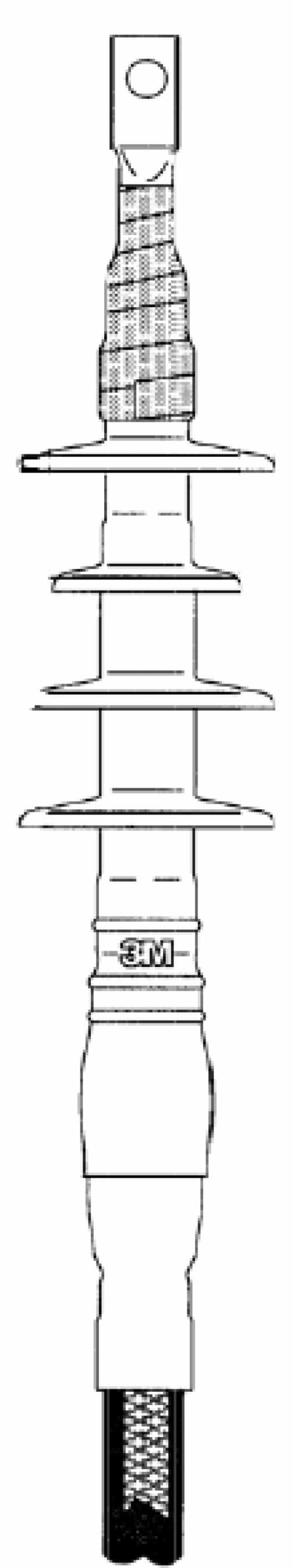

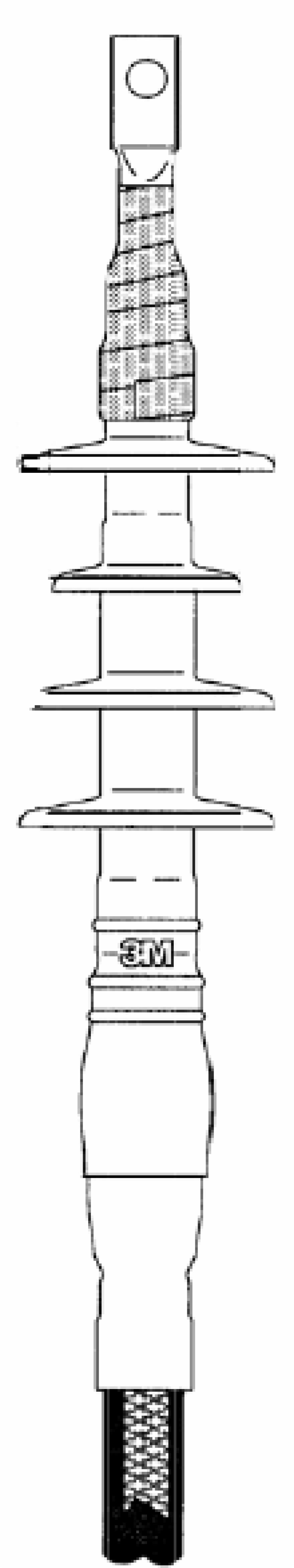

- Includes a 4-skirt, single-conductor, cold shrink termination
- IEEE 404/IEEE Standard 48 Approved for Class 1 terminations
3M™ Cold Shrink QT-II 5800-Pb Series Termination Kit includes a 4-skirt, 1-conductor termination. It ensures a pliable, tight seal for oil/paper-insulated, lead-covered power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
3M™ Cold Shrink QT-II 5800-Pb Series PILC Termination Kit is designed for terminating medium voltage cables in outdoor applications. When the 4-skirt terminal's core is unwound, it shrinks over the cable and ensures a leak-proof, ideal fit. The track-resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long-lasting service life while minimizing leakage currents in wet conditions. IEEE 404/IEEE Standard 48 Approved for Class 1 terminations. Conductor Size Range for · 15 kV: 750-1250 kcmil
