3M™ Cold Shrink QT-III Silicone Rubber Termination 7654-S-HSG-4-4/0 (High-Amp), CN and JCN Cable, 5-25/28 kV, 0.83-1.53 in (38,9-58,9 mm) Cable Insul. O.D., 1 termination/kit
- 3M ID 7100164575
Details
Highlights
- Provides a void-free seal to tape shield, longitudinally corrugated shield and wire-over-tape shield power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Termination has 0.83 to 1.53-in insulation O.D
- Accommodates wire sizes of 4/0 AWG at 15kV, 4/0 AWG at 25/28 kV
- Unique step-core design and silicone sealing compounds enable easier installation
- Withstands voltages of 5 to 35kV and is 150 kV BIL-rated
- Includes a single-phase, cold shrink termination and an SC0040 stem connector
- IEEE Approved

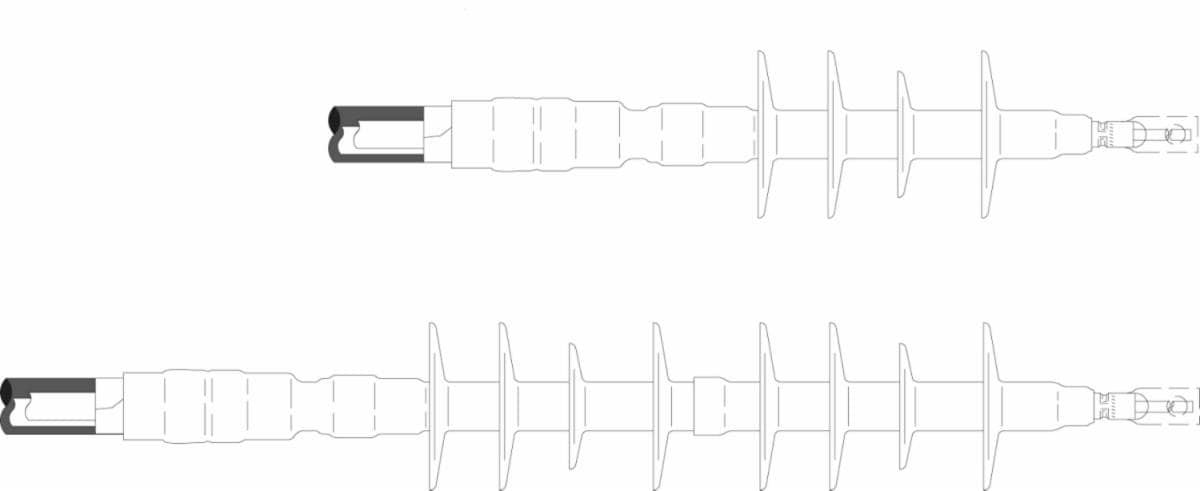

3M™ Cold Shrink QT-III 7650-S-HSG & 7660-S-HSG Series Termination Kit includes single-phase, high-fault current termination with a connector. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire-over-tape shield power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT-III 7650-S-HSG & 7660-S-HSG Series Termination Kit is designed for terminating medium voltage, solid dielectric-shielded power cables. The UV stable, track- and erosion-resistant construction makes the termination suitable for outdoor applications. The lower surface stress, high dielectric-constant material offers optimized BIL performance while ensuring a leak-proof, compact fit. IEEE Approved. Conductor Size Range for · 5 kV: 500-750 kcmil · 8 kV: 350-700 kcmil · 15 kV: 4/0 AWG-500 kcmil · 25/28 kV: 2/0 AWG-250 kcmil
Typical Properties
