3M™ Cold Shrink Cable Accessory Sealing Kit 8454
- 3M ID 7100164634
Details

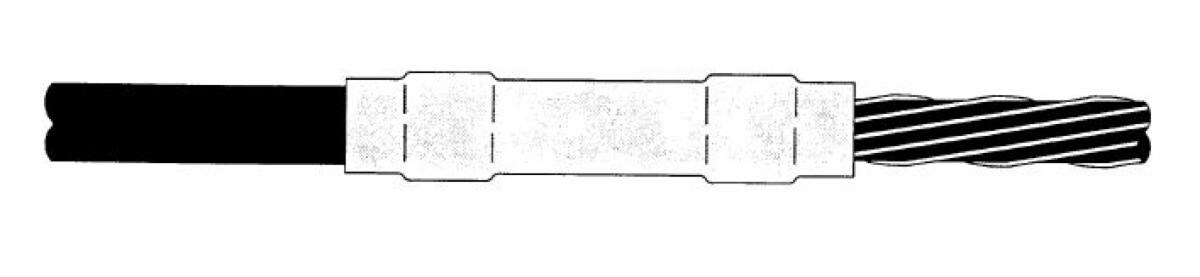

The 3M™ Cold Shrink Cable Accessory Sealing Kits 8450 Series are designed to seal the jacket end of power cables where elbows or other cable accessories are installed. Both the sealing tube and mastic are compatible with commonly used power cable jacketing and semiconductive materials.
Each kit contains enough materials to seal one cable jacket end.
Typical Properties
| Brands | 3M™ |
| Cable Size by Voltage | (15 kV) 750-1500 kcmil (380-725 mm²), (25 kV) 600-1250 kcmil (325-625 mm²), (35 kV) 350-1000 kcmil (180-500 mm²) |
| Cable Voltage Rating | 15 kV, 25 kV, 35 kV |
| Cold Shrink Sealing Tube | 1 (1/2 Inch Longer) |
| Expanded Tube Diameter (metric) | 98.3 mm |
| Material | EPDM Rubber |
| Maximum Cable Diameter (Metric) | 88.9 mm |
| Maximum Installed Diameter (metric) | 88.9 mm |
| Maximum Voltage | 35 kV |
| Minimum Cable Diameter (Metric) | 41 mm |
| Minimum Seal Diameter (metric) | 40.6 mm |
| Product Type | Accessory |
| Relaxed Tube Length (metric) | 22.86 cm |
| Shielding Type | Jacketed Concentric Neutral (JCN) |
