3M™ Cold Shrink QT-II Silicone Rubber Termination Kit 5672, CN and JCN Cable, 15 kV, 250-1000 kcmil, 1 termination/kit
- 3M ID 7100020813
Details
Highlights

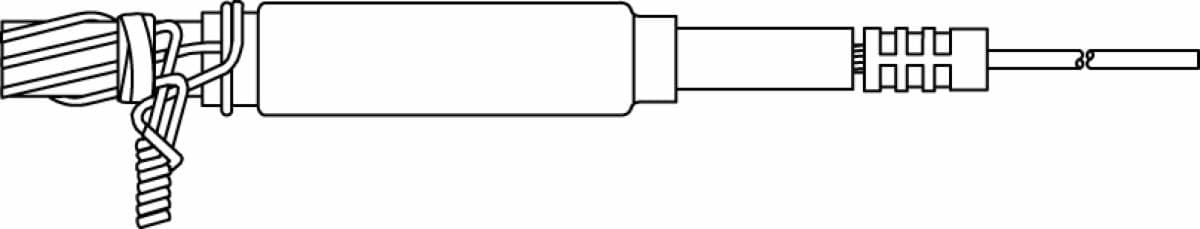

- Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Termination has 0.94 to 1.81-in insulation O.D
- Accommodates wire sizes of 250 to 1000 kcmil
- Non-tracking, molded, silicone rubber insulation offers durability
- Withstands voltages up to 15kV and is 110 kV BIL-rated
- Includes a non-skirted, 1-piece termination
- IEEE Standard 48 Approved for Class 3 terminations
3M™ Cold Shrink QT-II 5670 Series Termination Kit includes a non-skirted, 1-piece termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
3M™ Cold Shrink QT-II 5670 Series Termination Kit is designed for terminating medium voltage cables in indoor applications. The track-resistant, silicone rubber insulation of the termination features a long-lasting service life. The lower surface stress, high dielectric-constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. IEEE Standard 48 Approved for Class 3 terminations. Conductor Size Range for · 15 kV: 250-1000 kcmil
Typical Properties
| Applications | Cable Termination |
| BIL | 110 kV |
| Brands | 3M™ |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 23.8-46.0 mm |
| Case Quantity | 10 |
| Indoor/Outdoor | Indoor Non-skirted |
| Insulation Level | 100%, 133% |
| Insulation Outer Diameter (metric) | 23.876 mm, 24.13 mm, 24.384 mm, 24.638 mm, 24.892 mm, 25.146 mm, 25.4 mm, 25.654 mm, 25.908 mm, 26.162 mm, 26.416 mm, 26.67 mm, 26.924 mm, 27.178 mm, 27.432 mm, 27.686 mm, 27.94 mm, 28.194 mm, 28.448 mm, 28.702 mm, 28.956 mm, 29.21 mm, 29.464 mm, 29.718 mm, 29.972 mm, 30.226 mm, 30.48 mm, 30.734 mm, 30.988 mm, 31.242 mm, 31.496 mm, 31.75 mm, 32.004 mm, 32.258 mm, 32.512 mm, 32.766 mm, 33.02 mm, 33.274 mm, 33.528 mm, 33.782 mm, 34.036 mm, 34.29 mm, 34.544 mm, 34.798 mm, 35.052 mm, 35.306 mm, 35.56 mm, 35.814 mm, 36.068 mm, 36.322 mm, 36.576 mm, 36.83 mm, 37.084 mm, 37.338 mm, 37.592 mm, 37.846 mm, 38.1 mm, 38.354 mm, 38.608 mm, 38.862 mm, 39.116 mm, 39.37 mm, 39.624 mm, 39.878 mm, 40.132 mm, 40.386 mm, 40.64 mm, 40.894 mm, 41.148 mm, 41.402 mm, 41.656 mm, 41.91 mm, 42.164 mm, 42.418 mm, 42.672 mm, 42.926 mm, 43.18 mm, 43.434 mm, 43.688 mm, 43.942 mm, 44.196 mm, 44.45 mm, 44.704 mm, 44.958 mm, 45.212 mm, 45.466 mm, 45.72 mm, 45.974 mm |
| Insulation Rejacketing | No |
| Lug/Stem Connector Included in Kit | No |
| Material | Silicone Rubber |
| Number of Conductors | 1 |
| Product Color | Gray |
| Product Series | 5670 |
| Shielding Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Voltage | 15 kV |
