3M™ Cold Shrink QS-III Splice Kit 5467A-WG, 1/0 AWG-350 kcmil (60-185 mm2), 1 per case
- 3M ID 7100019553
Details
Highlights
- Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables
- Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
- Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors
- Cable has 1.07 to 1.7-in insulation O.D
- Accommodates 1/0 AWG to 350 kcmil size copper or aluminum conductors
- Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
- Rated for 35 kV cables
- High-voltage, production-tested for partial discharge and AC ensure reliability
- Meets or exceeds the class rating requirements of IEEE 404 standards
3M™ 5467A Series Cold Shrink QS-III Splice Kit is an inline splice designed to join 35kV jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV-90 or type MV-105 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions.

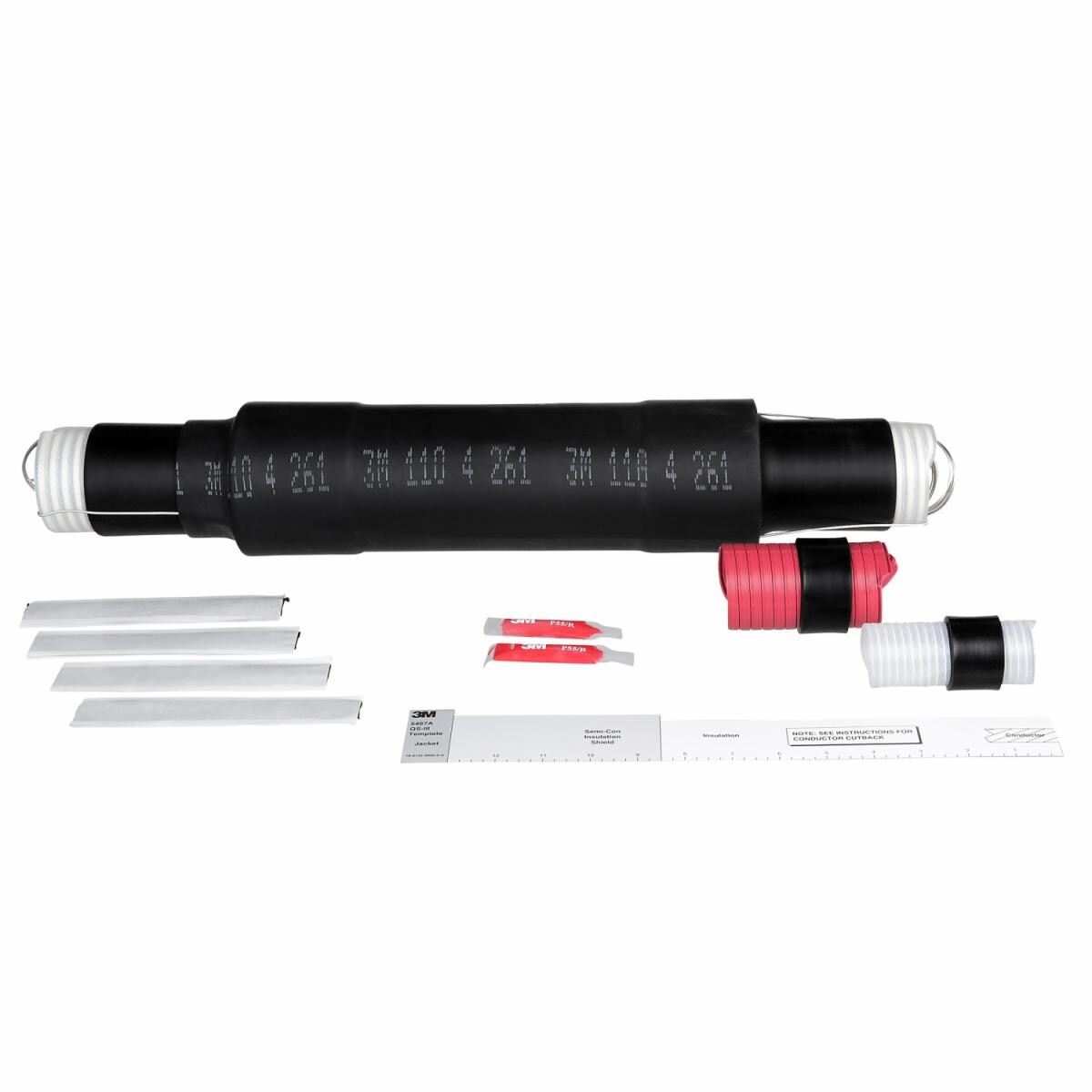

3M™ 5467A Series Cold Shrink QS-III Splice Kit includes 2 adapter tubes, 2 P55/R compound tubes, two 2230 mastic sealing strips, a cable preparation template and an instruction booklet. It has a computer-aided design that provides a compact size and optimal distribution of the electrical field. The cold shrink splice body has a specially formulated silicone rubber construction to ensure good high and low temperature performance. Its jacketing with EPDM rubber construction provides physical protection. The kit meets or exceeds class-rating requirements of IEEE 404 standards.
