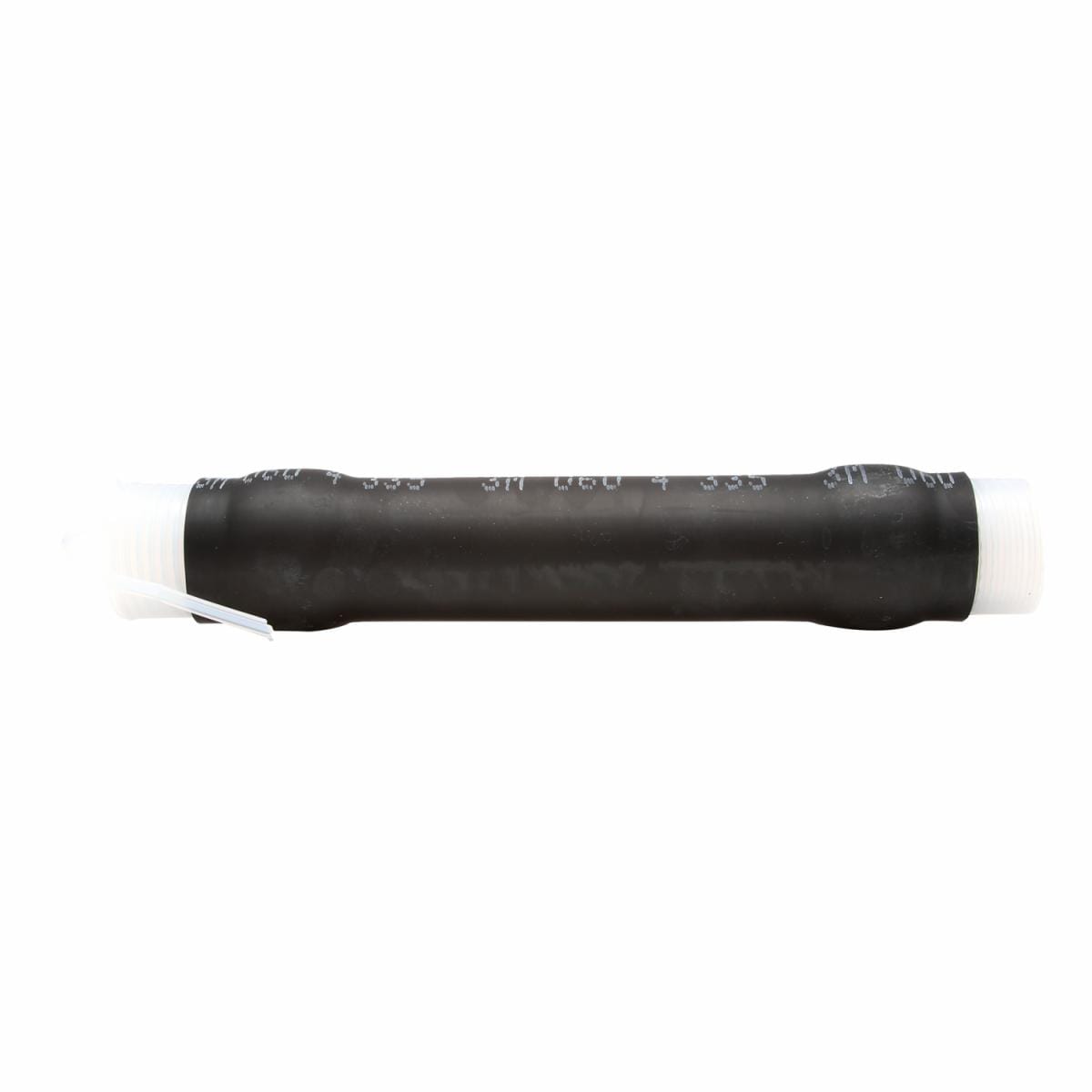

3M™ Cold Shrink Quick Insulator QI 10/37-270, 1 per case
- 3M ID 7000133177
Details
Highlights
- Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
- Simple installation which requires no tools
- Offers excellent wet electrical properties and resists water, acids and alkalis
- Insulates cable or connectors within a diameter range of 0.40 - 1.45 in (10,2 - 36,8 mm)
- Accommodates 2 AWG to 750 kcmil (Cu) and 2 AWG to 500 kcmil (Al) conductor sizes
- Made of EPDM rubber which contains no chlorides or sulfur
- Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
- Environmental sealing for communication and other non-electrical applications
- ANSI Certified and RoHS 2011/65/EU Compliant
- 10/case
3M™ QI Cold Shrink Quick Insulator features open-ended tubular rubber sleeves that provide sealing mastic on each end which allows the product to have a broader application range. It is ideal for insulating low-voltage splices in direct bury, secondary and low-voltage applications. This insulator is used for secondary splices, copper or aluminum conductors, dig-in repairs and sheath repairs.
3M™ QI Cold Shrink Quick Insulator maintains its resiliency and pressure, even after years of aging and exposure. It is designed to use with low-voltage, single-conductor, insulated cable. This insulator provides a tight seal and good thermal stability during storage as well as shipping. It is suitable for insulating inline conductor transition connectors and set screw or oversized connectors. This insulator withstands -40 to 194 degrees F (-40 to 90 degrees C). RoHS 2011/65/EU Compliant and ANSI Certified.
Typical Properties
| Applications | Cable Connection |
| Brands | 3M™ |
| Cable Type | Power Cable |
| Case Quantity | 10 |
| Conductor Material | Aluminum, Copper |
| Conductor Sizes (Metric) | 400 mm² |
| Connector Included | None, No |
| Dielectric Strength (V/mil) | 365 V/mil |
| Elongation | 750 Percent |
| Halogen Free | No |
| Indoor/Outdoor | Both |
| Inner Diameter After Shrink (Metric) | 10.2 mm |
| Inner Diameter Before Shrink (Metric) | 36.8 mm |
| Insulation O.D. Range (Metric) | 10.2-36.8 mm |
| Insulation Outside Diameter Range (metric) | 21.3 - 35.1 mm |
| Material | EPDM Rubber |
| Maximum Conductor Size (Metric) | 95 mm² |
| Maximum Connector Length (metric) | 114.3 mm |
| Maximum Connector O.D. (metric) | 36.8 mm |
| Maximum Operating Temperature (Celsius) | 90 ℃ |
| Minimum Conductor Size (Metric) | 35 mm² (Aluminum) |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Model | Cold-shrink |
| Number of Conductors | 1 |
| Product Type | Splice |
| Shielding Type | Non-shielded |
| Splice Type | Cold Shrink |
| Typical Splice Length (metric) | 736 mm |
| Units per Case | 1.0 |
| Voltage | 1 kV |
| Voltage Application | Medium Voltage |
| With Inner Glue | No |
