3M™ QT-II PILC Cable Silicone Rubber Termination Kit 5808-Pb, PILC Cable, 25/28 kV, 1.20-1.90 in (30-48 mm) Cable Insul. O.D., 1 termination/kit
- 3M ID 7000132541
Details
Highlights
- Provides a void-free seal to oil/paper-insulated, lead-covered power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Termination has 1.20 to 1.90-in insulation O.D
- Accommodates wire sizes of 750 to 1250 kcmil at 15kV/350 to 1000 kcmil at 25kV
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages of 15 to 25/28 kV and is 150 kV BIL-rated

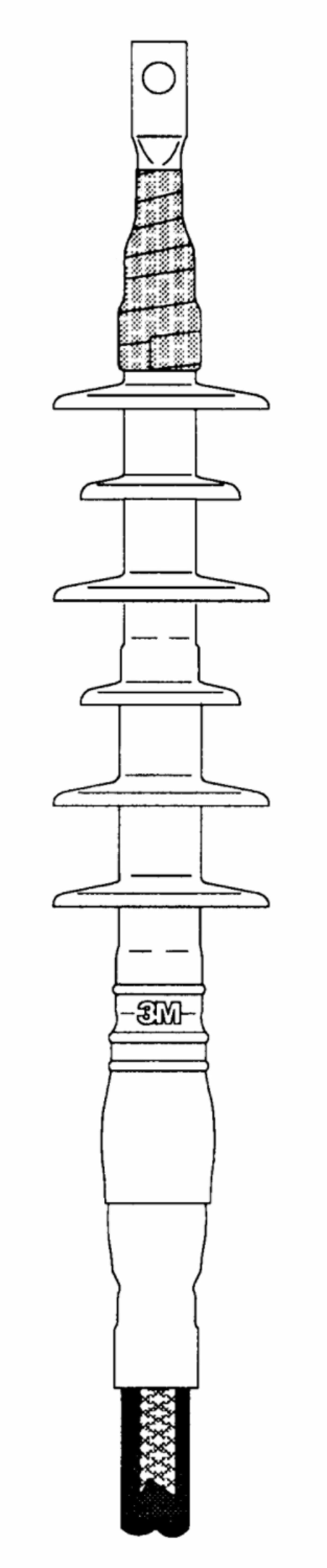

- Includes a 6-skirt, single-conductor, cold shrink termination
- IEEE 404/IEEE Standard 48 Approved for Class 1 terminations
3M™ Cold Shrink QT-II 5800-Pb Series Termination Kit includes a 6-skirt, 1-conductor termination. It ensures a pliable, tight seal for oil/paper-insulated, lead-covered power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
3M™ Cold Shrink QT-II 5800-Pb Series PILC Termination Kit is designed for terminating medium voltage cables in outdoor applications. When the 6-skirt terminal's core is unwound, it shrinks over the cable and ensures a leak-proof, ideal fit. The track-resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long-lasting service life while minimizing leakage currents in wet conditions. IEEE 404/IEEE Standard 48 Approved for Class 1 terminations. Conductor Size Range for · 15 kV: 750-1250 kcmil · 25/28 kV: 350-1000 kcmil
Typical Properties
| BIL | 150 kV |
| Brands | 3M™ |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 30.5-48.2 mm |
| Case Quantity | 1 |
| Indoor/Outdoor | Outdoor Skirted |
| Insulation Level | 100%, 133% |
| Insulation Rejacketing | No |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Number of Skirts | 6 |
| Product Series | 5800-Pb |
| Shielding Type | Paper Insulated Lead Covered (PILC) |
| Voltage | 15 kV, 25/28 kV |
