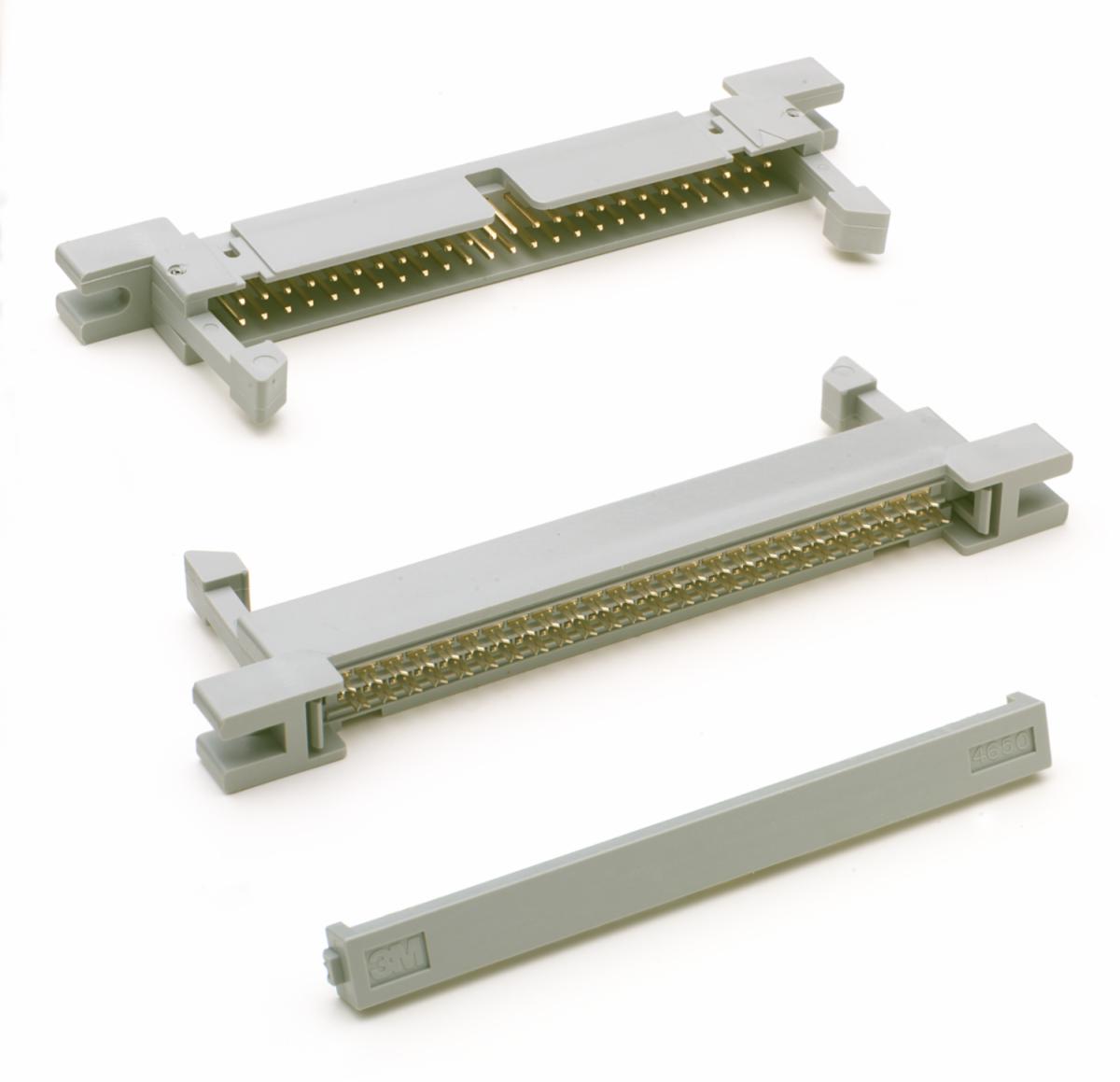

3M™ Wiremount Plug, 4600 Series, 4650-6300
- Part Number 4650-6300
- 3M Product Number 4650-6300
- 3M ID 7100234345
Details
Highlights
- Versatile and reliable IDC ribbon cable connector
- Shrouded design offers excellent protection against physical and chemical pin damage
- Includes open or closed end covers for added versatility
- Optional ejector latches for enhanced security
- Accepts flat cable or discrete wire for flexibility
- Center bump polarization option
- Optional mounting flanges and metal strain relief for easy installation
- Durable gray insulation made of glass-filled polyester (PBT)
- Compatible with .050 in. pitch ribbon cables and uses IDC termination method
3M™ Wiremount Plug, 4600 Series is an IDC ribbon cable connector that brings versatility and reliability. It offers a plug with open or closed end covers, optional ejector latches to help ensure a secure connection, and the ability to accept flat cable or discrete wire, for flexibility in your cable assembly needs.
With its shrouded design, 3M™ Wiremount Plug, 4600 Series features a center bump polarization option, along with optional mounting flanges and metal strain relief. The gray insulation, made of glass-filled polyester (PBT), provides durability and insulation properties. It is intended for ribbon cables and uses an IDC termination method, making it easy to assemble and install. This plug is UL 94V-0 rated, China RoHS and RoHS compliant.
Specifications
| Applications | Wire-to-board Connecting |
| Brands | 3M™ |
| Compatible Wire Type | Ribbon Cable |
| Connector Style | Plug |
| Contact Base Material | Copper Alloy |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Metric) | 2.54 µm |
| Current Rating | 1.0 |
| Features | Feed Through, Polarizing Key, Strain Relief, Closed End |
| Insulation Color | Gray |
| Insulation Material | Glass Filled Polyester (PBT) |
| Insulation Resistance | >1x10⁹ Ω @ 500 VDC |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 0.76 µm |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Number of Contact Rows | 2 |
| Number of Contacts | 50 |
| Pitch (Metric) | 2.54 mm |
| Product Series | 4600 |
| Specifications Met | UL 94V-0, RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-0086 |
| Termination Method | IDC |
| Withstanding Voltage | 1000 Vrms at Sea Level |
