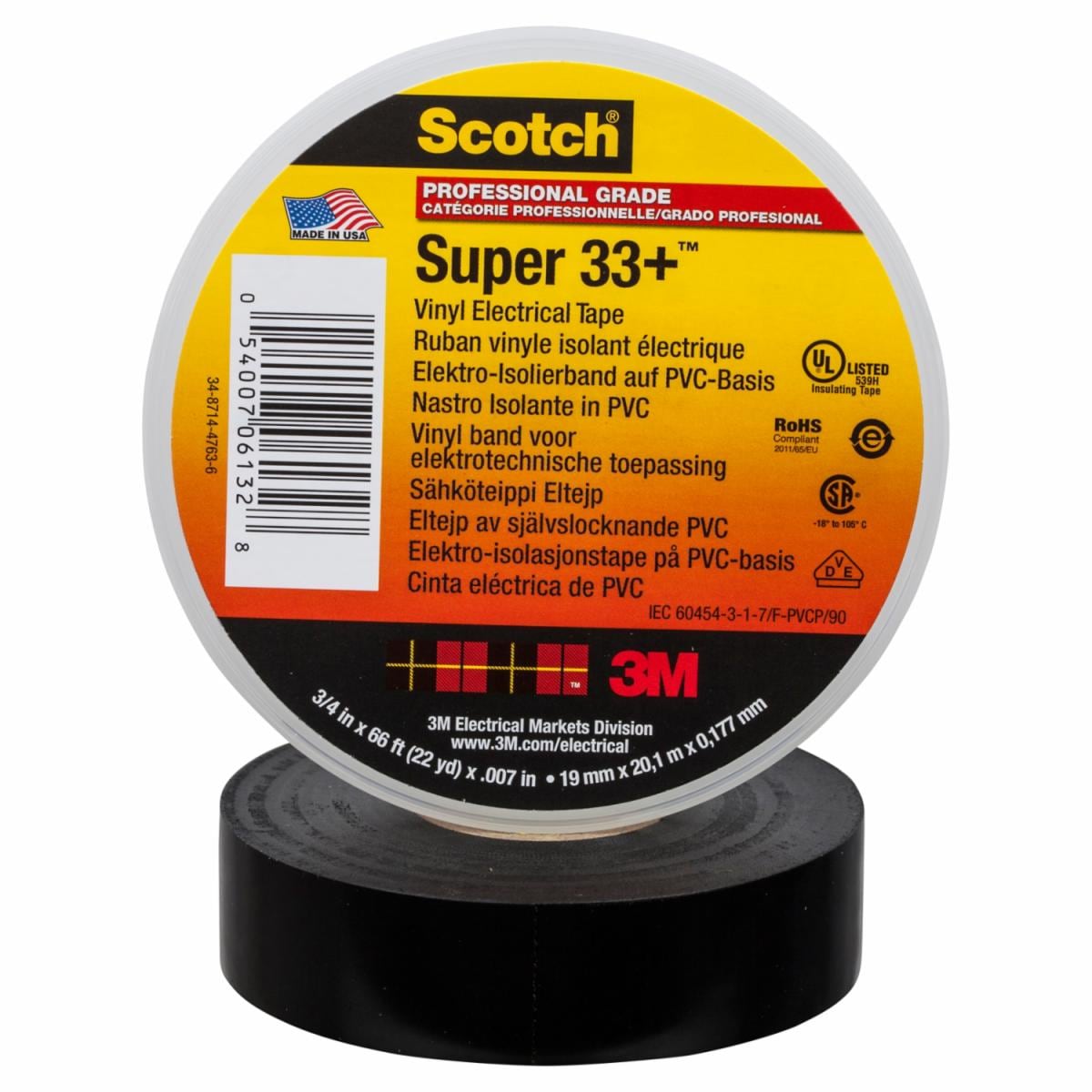

Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 66 ft (19 mm x 20,1 m), 100 per case
- 3M ID 7000042541
- UPC 00054007061328
Details
Highlights
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
- Resists UV rays, abrasion, moisture, alkalis, solvents and acids
- Flame-retardant and inhibits the corrosion of electrical conductors
- UL, CSA and VDE approved
A premium grade vinyl electrical insulating tape, its aggressive adhesive and elastic backing ensure easy, water-resistant conformation to irregular surfaces in low temperatures, yet will not ooze or melt in high temperatures. Inner pack of 1/can, 10/ctn.
Scotch® Super 33+ Electrical Tape a black, 7 mil tape, on a 1 inch core, combines the flexibility of a PVC backing with excellent electrical insulating properties to provide primary electrical insulation for splices up to 600V. Abrasion-, corrosion-, and UV-resistant, it makes an excellent protective jacketing for high-voltage cables and wire harnessing. UL Listed and CSA Certified, it resists alkalis and acids, and is flame-retardant. Excellent all-weather performance in cold to 0°F (-18°C) or hot to 220°F (105°C)
Typical Properties
| Adhesive Type | Rubber |
| Applications | Insulation |
| Backing (Carrier) Material | PVC |
| Brands | Scotch® |
| Dielectric Strength | 1150 V/mil |
| Elongation at Break | 250.0 Percent |
| Flame Retardant | Yes |
| Insulation Resistance | > 10^6 megohms |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -18 ℃ |
| Product Color | Black |
| Shelf Life | 5 Year |
| Specifications Met | CSA Certified, UL Listed |
| Tape Grade | Professional |
| Tensile Strength (metric) | 26 N/cm |
| Total Tape Thickness without Liner (metric) | 0.178 mm |
| Voltage Rating | 600 V |
| Overall Length (Metric) | 20 Meter |
| Overall Width (Metric) | 19 mm |
