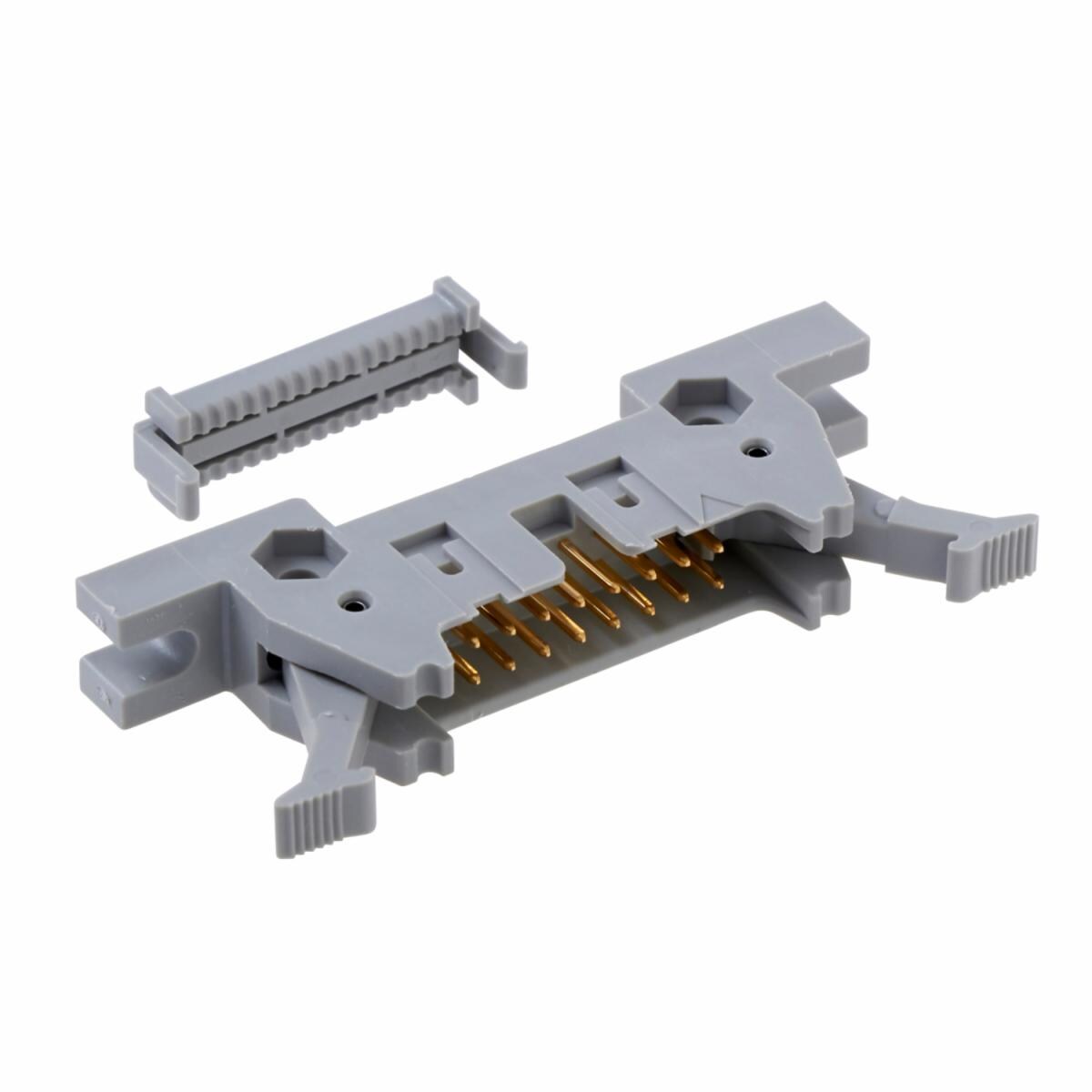

3M™ Standard Socket / Header mil Compliant Wiremount Click Plug, 4200 Series, 4210-0000 SCMD, Gray, 100 Ea/Case
- 3M ID 7100049009
Details
Highlights
- Versatile connection system for a broad range of electronic applications
- Allows for data rates up to 5G
- Limits crosstalk at high frequencies
- 50/100 Ohm impedance allows for used in a variety of devices and frequencies
- Modular/scalable format
The 3M™ Standard Socket / Header MIL Compliant Wiremount Click Plug, 4200 Series is a 2.54 mm pitch 2-row connection system that helps maximize electrical performance in electronic devices and assemblies. The system allows for data rates up to 5 Gbps, and helps limit crosstalk at high frequencies. Its 50/100 (single-ended differential) Ohm impedance makes it very versatile for a wide range of devices.
Available in vertical and right angle configurations, the 3M™ Standard Socket / Header MIL Compliant Wiremount Click Plug, 4200 Series features a modular/scalable format.
Specifications
| Applications | Wire-to-board Connecting |
| Brands | 3M™ |
| Connector Shape | Rectangular |
| Connector Style | Plug |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.0 |
| Insulation Color | Gray |
| Mating Contact Finish Thickness (Metric) | >0.2 µm |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Number of Contact Rows | 2 |
| Number of Contacts | 10 |
| PCB Mounting Angle | Straight |
| PCB Mounting Style | Through Hole |
| Pitch (Metric) | 2.54 mm |
