3M™ Pak 50 Low Profile Plug, P50L Series, .050" Low Profile, Through-Hole, Right Angle, Boardmount
- | Select product options for IDs.
Details
Highlights
- Requires just 0.276" (7 mm) from PCB surface
- 050” through-hole right angle plug
- Optional plug standoffs allow offset of mated boards by 1.0 - 4.0 mm
- High-temperature insulator is compatible with wave and IR soldering processes
- Retention clips help stabilize connector during wave soldering

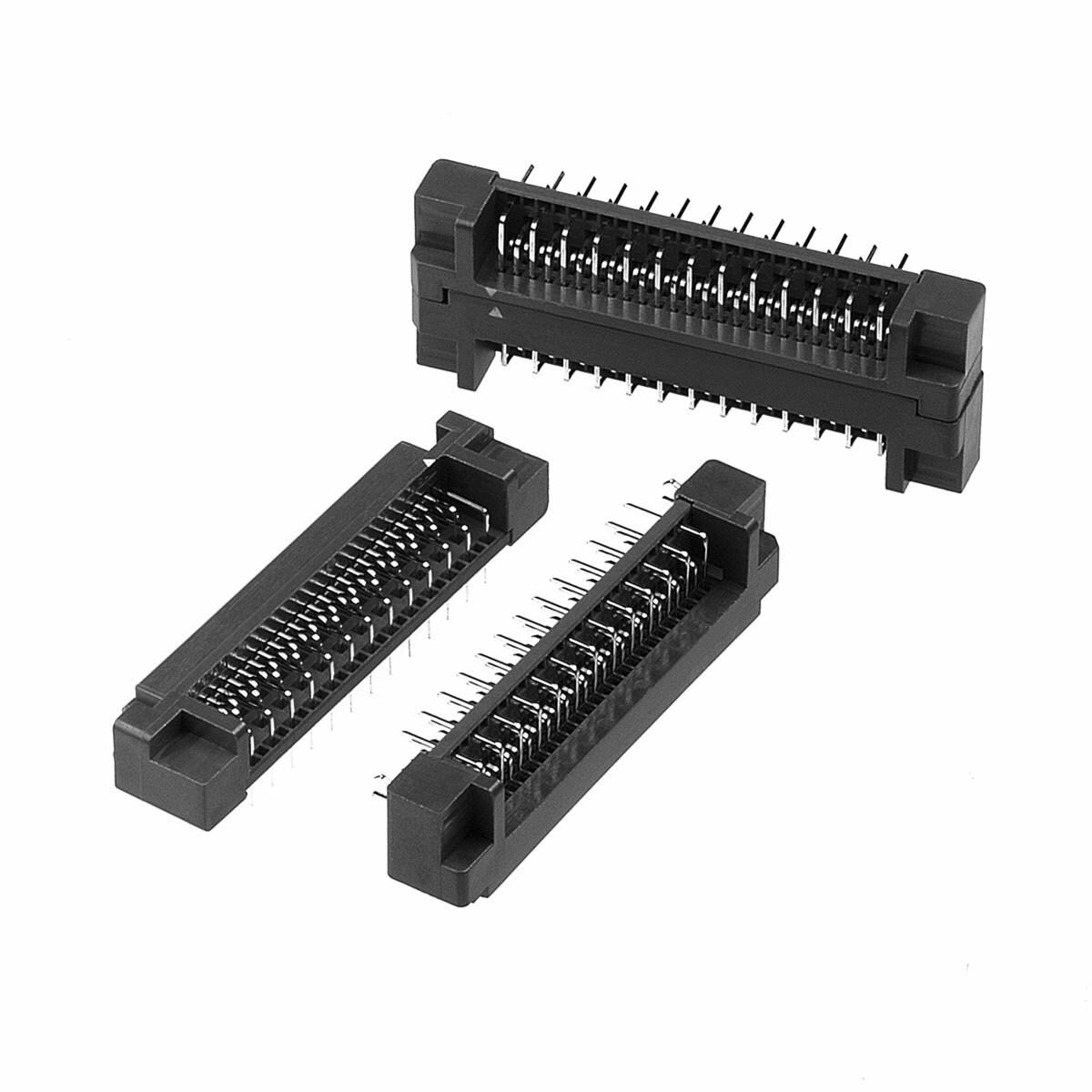

The 3M™ Pak 50 Low Profile Plug, P50L Series mounts just 0.276" (7 mm) from the PCB surface, excellent for compact designs. Optional plug standoffs allow mated boards to be offset by 1 - 4 mm. This 3M .050” plug is excellent for through-hole right angle boardmount applications.
The high-temperature insulator of the 3M™ Pak 50 Low Profile Plug, P50L Series is compatible with wave and IR soldering. Retention clips stabilize the connector during wave soldering.
Specifications
| Applications | Board-to-board Connecting |
| Connector Style | Plug |
| Insulation Resistance | >1x10⁹ Ω @ 500 VDC |
| Mating Option | None |
| Number of Contact Rows | 0 |
| Number of Contacts | 40 , 60 |
| Process Temperature Rating | 260 °C (Per J-STD-020C) |
| Tech Sheet Number | TS-1161 |
Resources

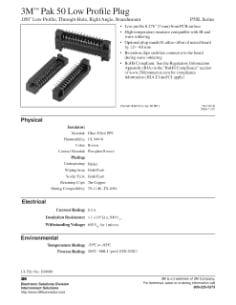

3M™ .050 in. Low Profile Plug, .050",Thru-Hole,RA,TS1161Data Sheets
(PDF, 896KB)
