3M™ Scotch-Weld™ Epoxy Adhesive 1386, Cream, 1 Quart, 12 Can/Case

  • 3M ID 7000046326

Exceptionally high strength properties at service temperatures from -70ºF to 250ºF (-57ºC to 121ºC)

Higher impact, peel and bond strength than many epoxy based adhesives

Easy application by knife coating, trowel, roller coating, pump and high pressure injection methods

View more details
Frequently viewed resources

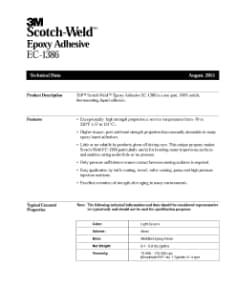

PDF (1) Copy 26Tech Data Sheet (PDF, 414KB)

Details

Highlights
  • Exceptionally high strength properties at service temperatures from -70ºF to 250ºF (-57ºC to 121ºC)
  • Higher impact, peel and bond strength than many epoxy based adhesives
  • Easy application by knife coating, trowel, roller coating, pump and high pressure injection methods
  • Excellent retention of strength after aging in typical environments
  • Flammability testing per UL94 HB
  • Wide process window for curing: 300°F to 450°F (150°C to 232°C)

3M™ Scotch-Weld™ Epoxy Adhesive 1386 is a one-part, thermosetting liquid adhesive that provides exceptionally high strength at service temperatures from -70°F to 250°F (-57ºC to 121ºC). This cream colored adhesive can be applied by knife coating, trowel, roller coating, pump and high pressure injection methods.

Excellent Fatigue and Peel Performance
Our 3M™ Scotch-Weld™ Epoxy Adhesive 1386 offers exceptionally high performance at service temperatures ranging from -70ºF to 300ºF (-57ºC to 149ºC). Suggested cure profile: 60 minutes at 350ºF (177ºC). Impact, fatigue and peel performance is better than many epoxy adhesives.

Recommended Applications


Metal to metal bonding)


Offers Excellent Strength Retention
Our strong, reliable formula enables curing with only pressures sufficient to insure contact between mating surfaces required. This cream colored adhesive is a versatile product that can be applied by knife coating, trowel, roller coating, pump and high pressure injection. 3M™ Scotch-Weld™ Epoxy Adhesive 1386 provides excellent strength after aging in typical environments.

Understanding Epoxy Adhesives
Epoxy adhesives are part of the class of adhesives called "structural adhesives," which also includes polyurethane, acrylic, cyanoacrylate and others. Epoxies are formulated as liquid reactive polymers that undergo a chemical reaction when mixed and then cure to form a solid plastic material. Once the two parts are mixed in their specified ratio, they begin the curing process and offer a limited working time where the adhesive can be applied and the two surfaces positioned as needed. This work life lasts anywhere from a few minutes to several hours. These structural adhesives provide high shear and peel strengths, depending on the formula, and better heat and chemical resistance than other common adhesives. In general, epoxy adhesives have the highest overall strength and offer the best performance and most resistance to high temperatures, solvents and outdoor weathering.

Epoxy adhesives are widely used in building and home construction; aircraft and automobile manufacturing; bicycle, boat, golf clubs, ski and snowboard assembly as well as a host of home use and other applications. They are used virtually

Typical Properties

Resources

Related Products

Adhesive Type Epoxy
Brands Scotch-Weld™
Container Size (Metric) 0.95 Litre
Design Challenges Impact & Shock Absorption, Noise Vibration & Harshness Control NVH
Flame Retardant UL94 HB
Full Cure 1 Hour @ 350 F (177 C)
Indoor/Outdoor Both
Industries Construction, Consumer Goods, Electronics, General Industrial, Metalworking, Military and Government, Signage, Specialty Vehicle, Transportation, Woodworking
Maximum Operating Temperature (Celsius) 121 ℃
Physical Form Flowable Liquid
Product Form Quart
Product Type Epoxy Adhesive
Shear Strength at 72 Degrees F (22 Degrees C) 5500 psi
Storage Temperature (Celsius) 4.0 °C
Units per Case 12.0
Viscosity Non-sag
Volume (metric) 950 mL
