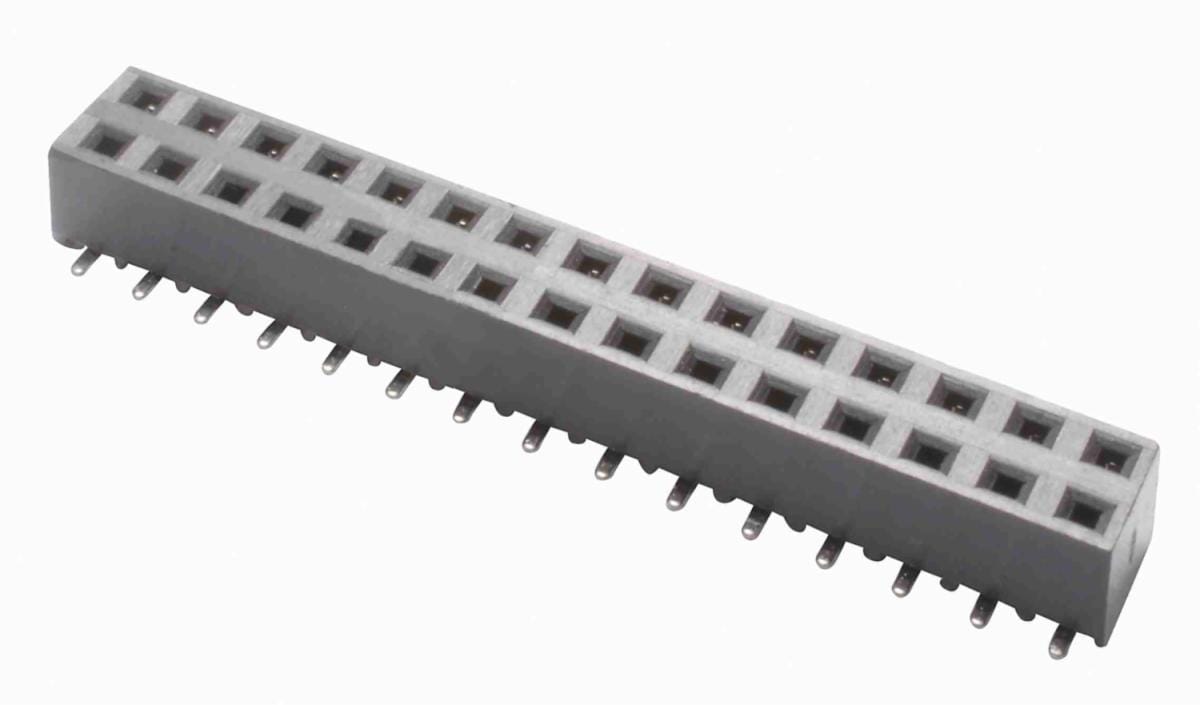

3M™ Through-Board Socket, 9662XX-2000-AR-XX Series
- | Select product options for IDs.
Details
Highlights
- Available in 6 to 50 pins
- Mates with pin headers for board stacking applications
- High-dielectric header withstands high temperatures and temp cycling
- Allows for reflow soldering processes
- Compatible with "no lead" solder reflow
The 3M™ Through-Board Socket, 966 Series is a dual row, 6- to 50-position socket that mates with pin headers from the top and bottom of the PCB for efficient board stacking. The through-hole socket features a low profile for excellent space utilization.
Featuring high-dielectric materials, 3M™ Through-Board Socket, 966 Series is compatible with reflow soldering processes even with no-lead solder.
Specifications
| Applications | Board-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Current Rating | 2.0 |
| Features | Pick & Place, Bottom or Top Entry |
| Insulation Color | Black |
| Insulation Height (Metric) | 5 mm |
| Insulation Material | Thermoplastic |
| Latch/Ejector Type | Push-in/Pull-out |
| Mating Contact Finish Material | Gold Flash |
| Mating Contact Finish Thickness (Metric) | <0.25 µm |
| Mating Option | Board to Board |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -25 ℃ |
| Number of Contact Rows | 2 |
| Number of Contacts | 6 , 10 , 20 , 30 , 40 |
| PCB Mounting Style | Surface Mount |
| Pitch (Metric) | 0.1 mm |
| Post Contact Finish Material | Tin |
| Product Series | 966 |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-2652 |
| Voltage Rating | 1000 Vrms at Sea Level |
Resources
3M™ BM Plug & Receptacle Conn 96X Series, 2.54 mm (.100 in)Data Sheets
(PDF, 112KB)
3M™ Through-Board Socket, 966 Series, 78-5100-2652-5Data Sheets
(PDF, 1MB)
