3M™ Pak 10 Surfacemount Socket, PK10 Series

  • Options available
  • | Select product options for IDs.

1 mm pitch surface mount socket

Allows for stacked, horizontal or vertical mating

Low profile 5 mm mated height is excellent for space-constrained environments

View more details
Frequently viewed resources

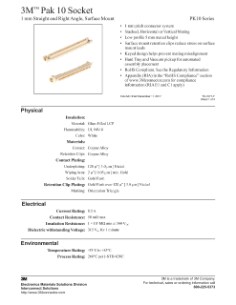

PDF (1) Copy 26Tech Data Sheet (PDF, 1MB)
icn_down_arrow

Select product options

Contact Us

Details

Highlights
  • 1 mm pitch surface mount socket
  • Allows for stacked, horizontal or vertical mating
  • Low profile 5 mm mated height is excellent for space-constrained environments
  • Surface mount retention clips reduce stress on SMT leads
  • Keyed design helps prevent mating misalignment
  • Hard tray and vacuum pickup are ideal for automated assembly placement
  • Mates to 3M™ Pak 10 Plug, PK10 Series

3M™ Pak 10 Surfacemount Socket, PK10 Series a versatile 1 mm pitch socket that allows for stacked, horizontal, or vertical mating. Its low-profile design features a mated height of just 5 mm for applications where space is limited. Surface mount retention clips reduce stress on the leads and help keep the plug inserted solidly. Its keyed design helps prevent misalignment during mating. A hard tray and vacuum pickup capabilities make the socket ideal for automated assembly placement.

Part of a versatile, low-profile connector system, the 3M™ Pak 10 Surfacemount Socket, PK10 Series mates to the 3M™ Pak 10 Plug, PK10 Series.

Specifications

Applications

Board-to-board Connecting

Connector Style

Receptacle

Contact Base Material

Copper Alloy

Contact Termination Area Plating Material

Gold Flash

Insulation Material

Glass Filled LCP

Insulation Resistance

>1x10³ MΩ @ 500 VDC

Mating Option

None

Number of Contact Rows

0

Number of Contacts

30 , 50 , 80 , 100

Pitch (Metric)

1 mm

Process Temperature Rating

260 °C (Per J-STD-020C)

Specifications Met

UL 94V-0

Tech Sheet Number

TS-1077
