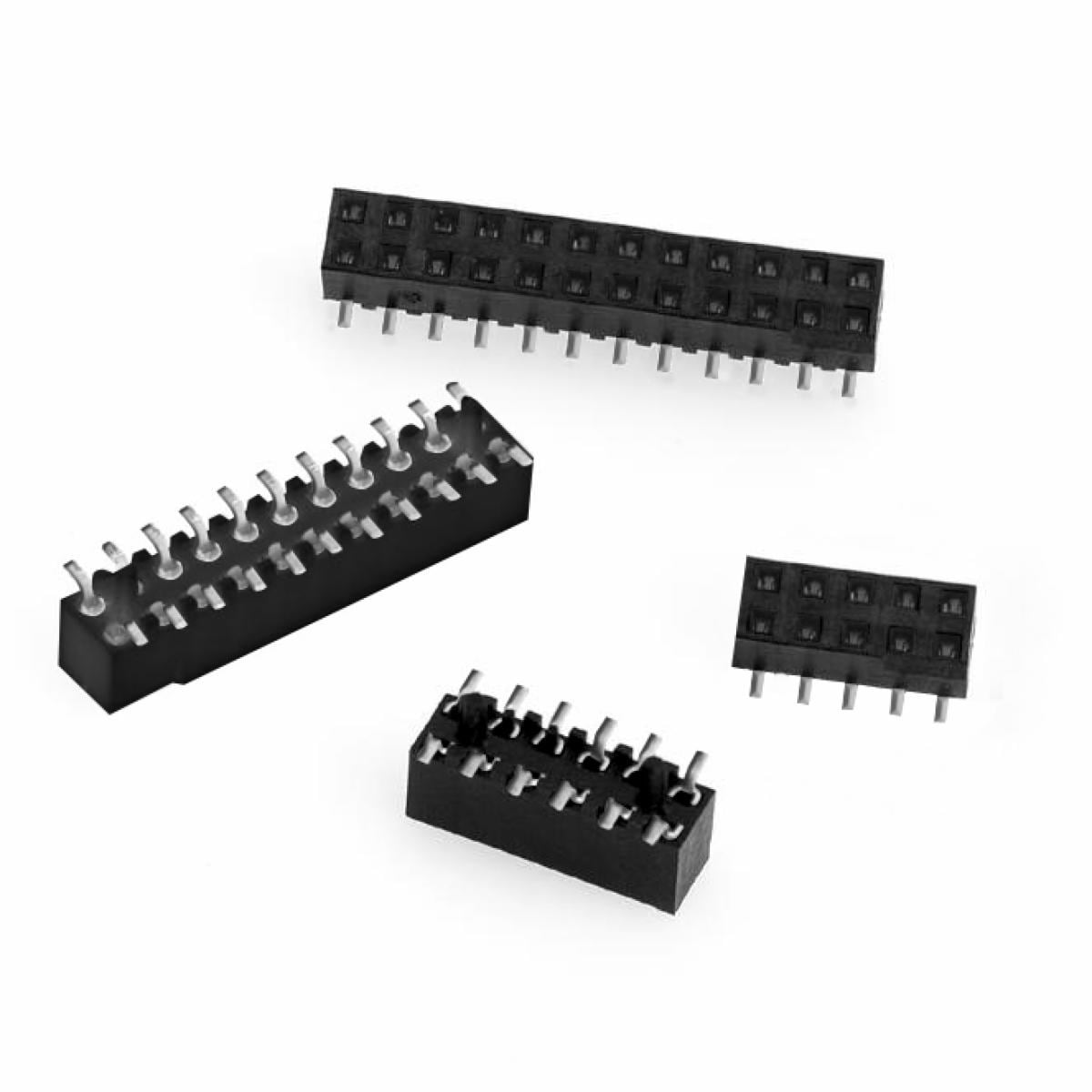

3M™ Boardmount Socket, 1502XX-20X0-XX-XX, 1502 Series
- | Select product options for IDs.
Details
Highlights
- Low height is ideal for board stacking
- Through-hole and SMT versions
- Through-hole versions are available side and end to end stackable; SMT is available end stackable
- Tape-and-reel pack with vacuum cap for automated placement (SMT only)
- High-temperature insulator is solder reflow compatible
The 3M™ Boardmount Socket, 1502 Series features a low height design for applications requiring stacked PCBs. This versatile socket is available in through-hole and surface mount versions. The SMT version is end stackable and features tape and reel packaging and vacuum cap for automated placement applications. Through-hole versions are available side stackable.
The high-temperature insulator of the 3M™ Boardmount Socket, 1502 Series is compatible with reflow soldering processes.
Specifications
| Applications | Board-to-board Connecting, Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.0 |
| Features | Board Location Posts |
| Insulation Color | Black |
| Insulation Height (Metric) | 4.5 mm |
| Insulation Material | High Temperature Thermoplastic |
| Latch/Ejector Type | Push-in/Pull-out |
| Mating Contact Finish Material | Gold |
| Mating Option | Board to Board, Board to Cable, Board to Wire |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Number of Contact Rows | 2 |
| Number of Contacts | 4 , 6 , 8 , 10 , 12 , 14 , 16 , 18 , 20 , 22 , 24 , 26 , 28 , 30 , 32 , 34 , 36 , 38 , 40 , 44 , 50 , 52 , 54 , 56 , 60 |
| PCB Mounting Angle | Straight |
| PCB Mounting Style | Surface Mount, Through Hole |
| Pitch (Metric) | 0.079 mm |
| Post Contact Finish Material | Matte Tin |
| Product Series | 1502 |
| Specifications Met | UL 94V-0, RoHS 2011/65/EU |
| Tech Sheet Number | TS-0519 |
| Voltage Rating | 500 Vrms at Sea Level |
Resources
3M™ Boardmount Socket, 1502 SERIES, 2mm, TS-0519Data Sheets
(PDF, 2MB)
