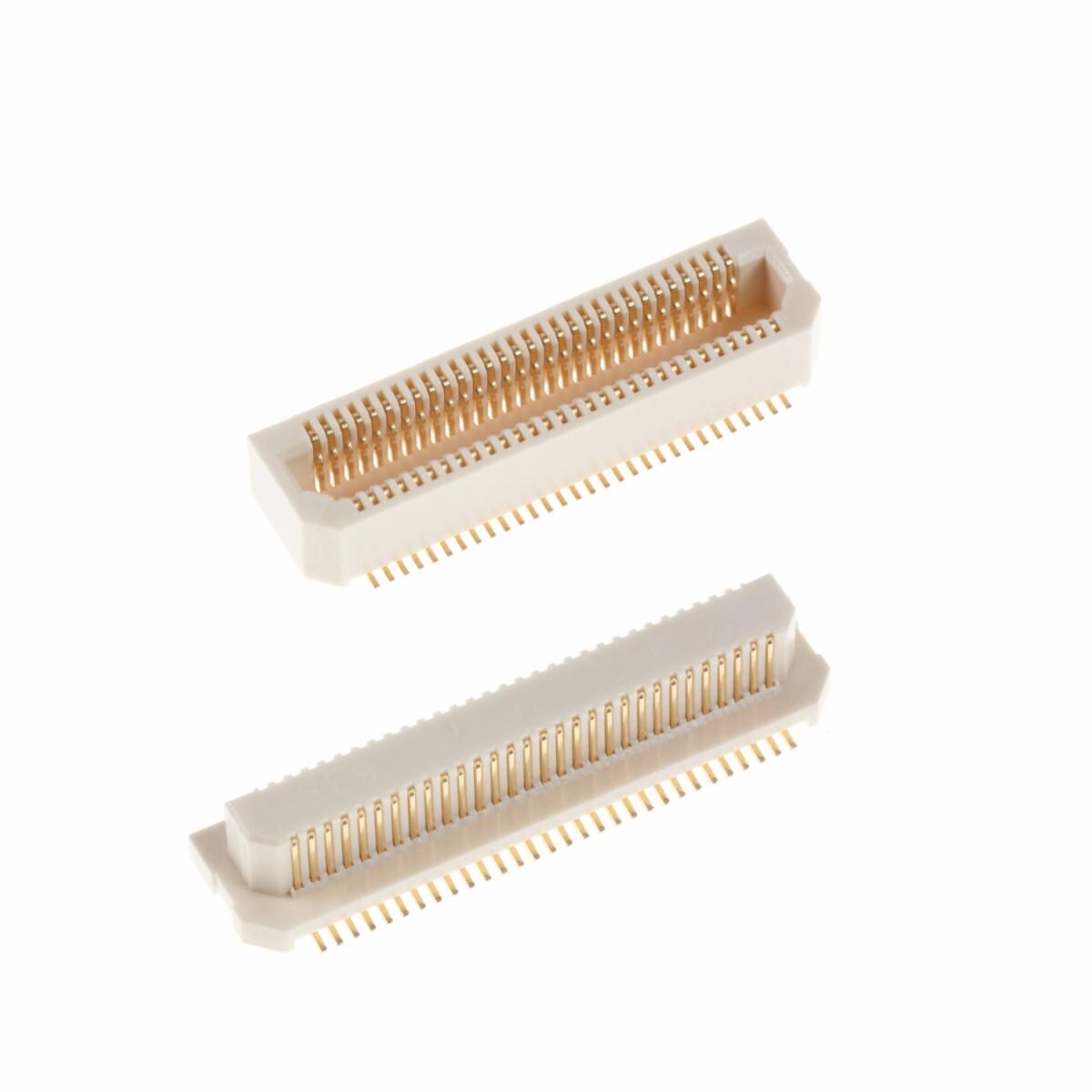

3M™ Board Stacking Connector System, P05N Series, P05N-060ST-B-G
- 3M ID 7000043849
Details
Highlights
- 0.5 mm pitch connector system ideal for applications with limited space
- Mated heights of 4, 5, & 6 mm
- Bellows type contact reduces mating stress and insures reliability
- Tactile click action assures complete mating and assures high resistance to vibration and shock
- Standard tape & reel packaging
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
- For more information, refer to Data Sheet TS1092 (TS-1092)
P05N Series, 0.5mm Board Stack System, Vertical, SMT, 4, 5, & 6 mm Stack Height
Specifications
| Applications | Board-to-board Connecting |
| Contact Base Material | Copper Alloy |
| Contact Termination Area Plating Material | Gold Flash |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Metric) | 1.27 µm |
| Insulation Resistance | >1x10³ MΩ @ 500 VDC |
| Number of Contacts | 60 |
| Pitch (Metric) | 0.5 mm |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-1092 |
Resources

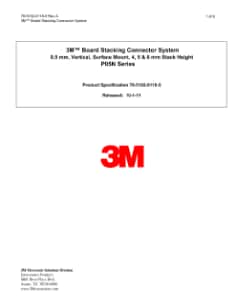

3M™ Board Stacking Connector System, P05N SeriesData Sheets
(PDF, 148KB)

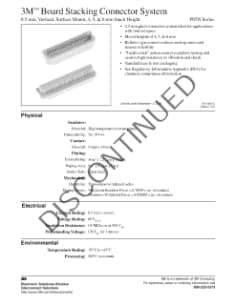

3M™ Board Stacking Connector System, TS1092Data Sheets
(PDF, 1MB)

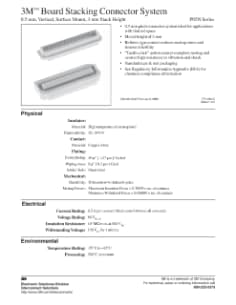

3M™ Board Stacking Connector System, TS1093Data Sheets
