3M™ MetPak™ 2-FB Socket, MP2 Series
- | Select product options for IDs.
Details
Highlights
- End-to-end stackable
- Offset dual-beam contact minimizes insertion force
- Expanded pin counts
- Protective Push-Cap

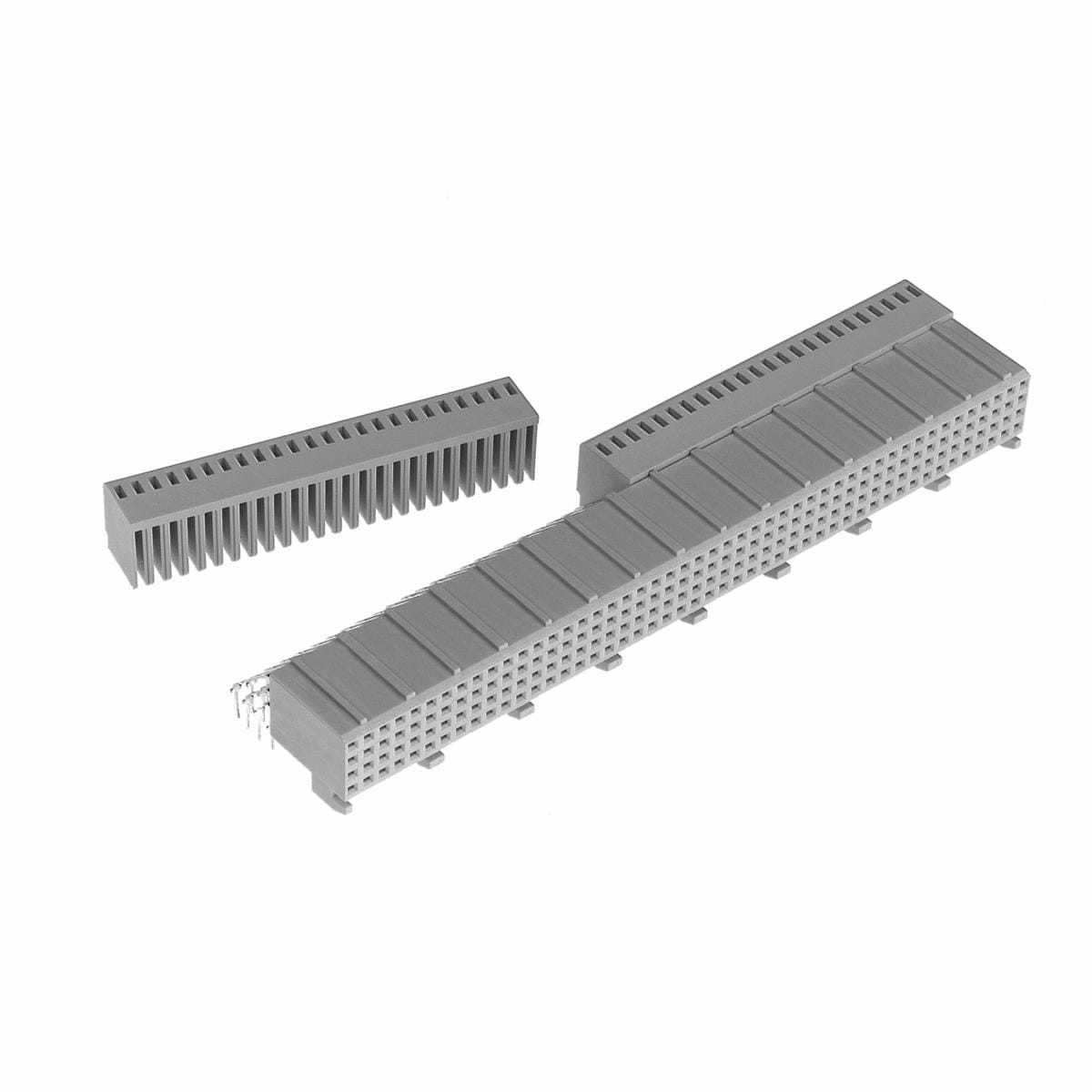

3M™ MetPak™ 2-FB Socket, MP2 Series is a 2mm, 5-row, right angle with solder or press fit tails. This connector is end to end stackable. Offers offset dual-beam contact that minimizes insertion force and molded guide fingers provide integrated alignment.
Specifications
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.5 |
| Features | Board Lock, Board Guide, Spacer, Cap |
| Flammability | UL 94V-0 |
| Insulation Color | Beige |
| Insulation Material | High Temperature LCP |
| Insulation Resistance | 10^3 MegaOhms |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 0.076 µm |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Mounting Type | Boardmount |
| Number of Contact Rows | 4 , 5 |
| Number of Contacts | 24 , 30 , 120 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Packaged Form | Tube, Bulk |
| Physical Plating Property | 50 microinches [1.27 micrometers] Nickel |
| Pitch (Metric) | 2 mm |
| Process Temperature Rating | 260 Degrees C (Profile per J-STD-020C) |
| Product Series | MP2 |
| Solder Tails | See Ordering Information |
| Tech Sheet Number | TS-1115 |
| Temperature Rating | -55 Degree C to +125 Degree C |
| Termination Method | Solder, Press Fit |
| Wiping Area (Plating) | See Ordering Information |
| Withstanding Voltage | 1000 VAC |
Resources
3M™ MetPak™ 2-FB Skt.,2 mm 4-5 Row,Solder Tail,RA,TS1115Data Sheets
(PDF, 328KB)
