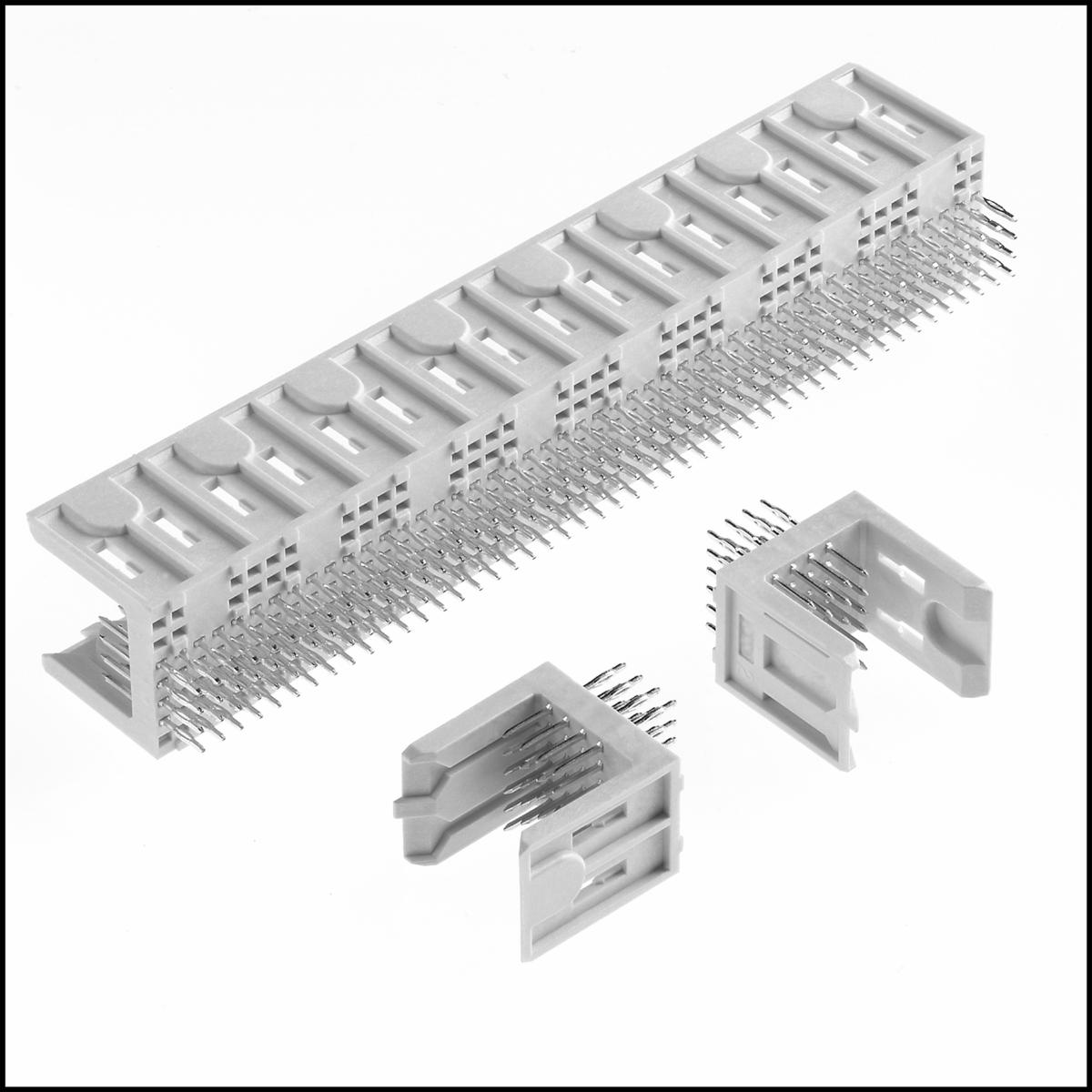

3M™ MetPak™ 2-FB Header, MP2 Series

Name: 3M™ MetPak™ 2-FB Header, MP2 Series
Brand: 3M

Solder Tail

End-to-end stackable

Select load capability

Connector Style

Number of Contacts

Number of Contact Rows

Select product options

Solder Tail
End-to-end stackable
Select load capability
Monoblockable
Shoulder Pin
Press Fit
End-to-end stackable
Early mate late break for hot swapping (press-fit EMLB adjusted by application tooling)
Select load capability

2 mm 4/5 Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin

Monoblockable

Connector Style	Pin Header, Receptacle
Contact Base Material	Phosphor Bronze
Current Rating	1.5
Features	Board Guide, Mating Guide
Flammability	UL 94V-0
Insulation Color	Beige
Insulation Material	High Temperature LCP
Insulation Resistance	10^3 MegaOhms
Mating Contact Finish Material	Gold
Mating Contact Finish Thickness (Metric)	0.076 µm, 0.76 µm
Moisture Sensitivity Level	1 (Per J-STD-020C)
Mounting Type	Boardmount
Number of Contact Rows	4 , 5
Number of Contacts	24 , 30 , 60 , 150
PCB Mounting Style	Through Hole
Packaged Form	Bulk, Tube
Physical Plating Property	50 microinches [1.27 micrometers] Nickel
Pitch (Metric)	2 mm
Process Temperature Rating	260 Degrees C (Profile per J-STD-020C)
Product Series	MP2
Solder Tails	See Ordering Information
Tech Sheet Number	TS-1120
Temperature Rating	-55 Degree C to +125 Degree C
Temperature Rating: USA	-55 Degrees C to +125 Degrees C
Termination Method	Solder, Press Fit
UnderPlating Material	50 micro inches [1.27 micro meter] Nickel
Wiping Area (Plating)	See Ordering Information
Withstanding Voltage	1000 VAC

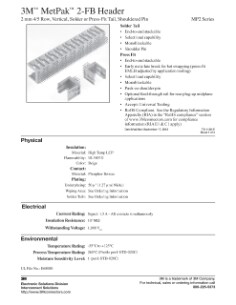

Data Sheets

(PDF, 1MB)
