3M™ Pin Strip Header, 951 Series, 951415-9012206-AR
- 3M ID 7000062996
Details
Highlights
- High temperature dielectric
- “No lead” wave and reflow solder compatible
- Optimizes use of PC board space
- End stackable feature
- Side stackable feature
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
- For more information, refer to Data Sheet TS2160 (TS-2160)

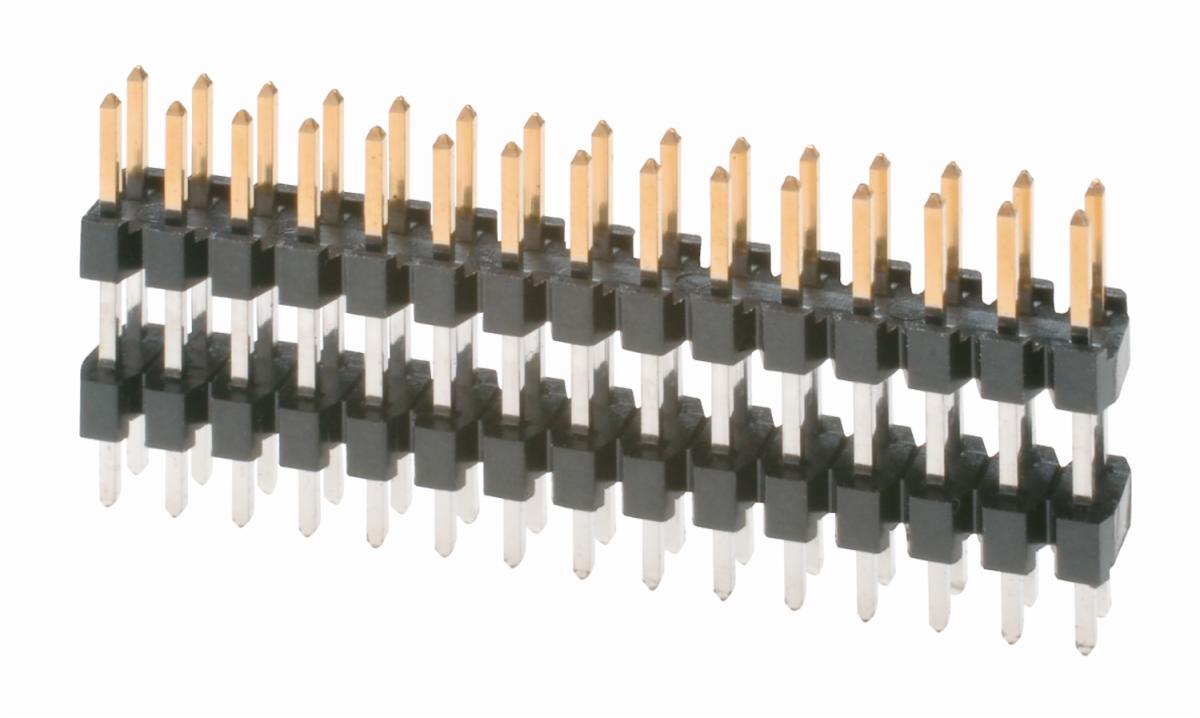

951 Series, 2mm Header, Dual Insulator, Straight, Solder Tail
Specifications
| Applications | Board-to-board Connecting |
| Contact Base Material | Copper Alloy |
| Contact Termination Area Plating Material | Matte Tin |
| Contact Termination Area Plating Thickness (Metric) | 1 µm - 3 µm |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Metric) | 1.25 µm - 2.5 µm |
| Insulation Material | High Temperature Thermoplastic |
| Insulation Resistance | >5x10⁸ Ω @ 100 VDC |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Process Temperature Rating | 260 °C Maximum (Per J-STD-020C) |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-2160 |
Resources

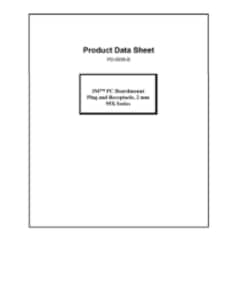

3M™ PC Boardmount Plug and Receptacle, 2 mm, 95X SeriesData Sheets
(PDF, 99KB)

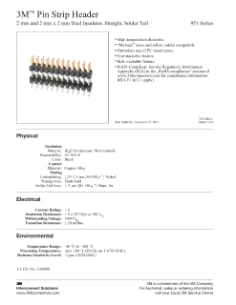

3M™ Pin Strip Header TS2160Data Sheets
(PDF, 689KB)
