3M™ Shielded/Jacketed, Flat Cable 1785 Series
- | Select product options for IDs.
Details
Highlights
- Expanded copper shielding provides easier termination vs. aluminum/mylar shielding
- 360 degree expanded copper shielding delivers 20 db average shielding effectiveness
- Twist and flat repeat has variable length options
- 28 AWG wire with .050 pitch centers
- Multi-color insulation for efficient routing and tracing
- RoHS compliant

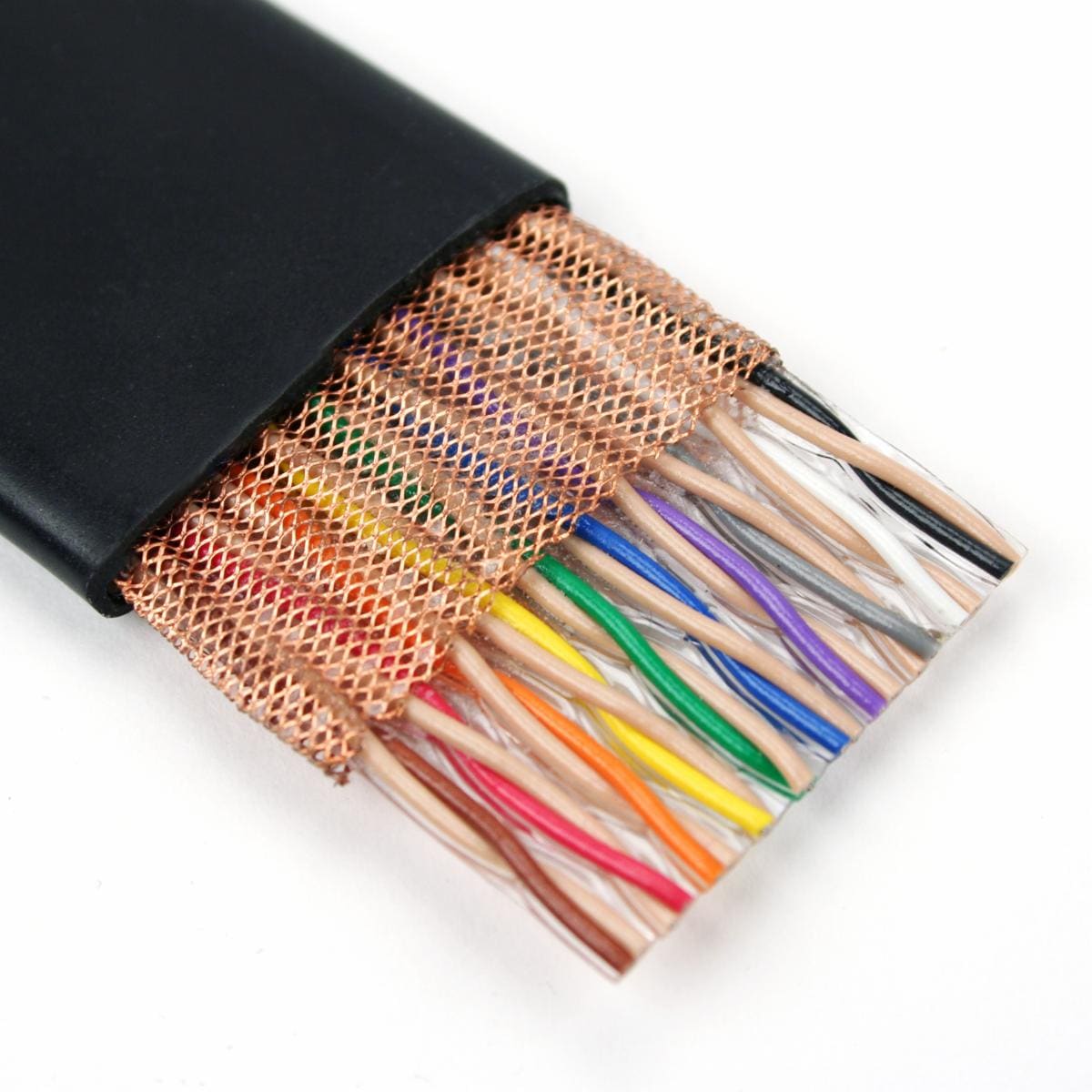

The 3M™ Shielded/Jacketed, Flat Cable 1785 Series is a twisted pair, stranded wire featuring expanded copper shielding, providing easier termination compared to cable with aluminum/mylar shielding. The 360-degree expanded copper shielding provides excellent average shielding effectiveness of 20 dB. This shielded flat ribbon cable features a 28 AWG wire with a .050 pitch connector. Multi-color insulation makes for efficient routing and tracing.
With UL listing for both the US and Canadian markets, 3M™ Shielded/Jacketed, Flat Cable 1785 Series meets the external wiring requirements of the National Electrical Code, Article 725.
Specifications
| Applications | Crosstalk Reduction, Mass Termination, Noise Immunity |
| Features | Chemical Resistance |
| Insulation Color | Multi-color |
| Insulation Material | PVC |
| Number of Conductors | 10 , 16 , 20 , 26 , 34 , 36 , 40 , 50 , 60 , 64 |
| Number of Pairs | 5 , 8 , 10 , 13 , 17 , 18 , 20 , 25 , 30 , 32 |
| Number of Strands | 7 |
| Pitch (Metric) | 1.27 mm |
| Product Usage | Sensors, Amplifiers, Balanced Drive Mechanisms, Box-to-box, Cameras, Controllers |
| Specifications Met | RoHS 2011/65/EU |
| Tech Sheet Number | TS-0308 |
| Wire Size | 28 AWG |
| Overall Length (Metric) | 30.48 Meter |
Resources

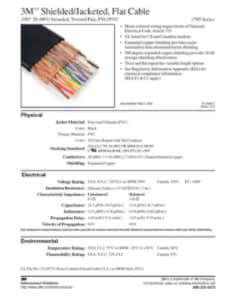

3M™ Shielded/Jacketed, Flat Cable, 1785 Series, TS0308Data Sheets
(PDF, 2MB)
