3M™ Pak 50 Power Ground Socket, P50 Series
- | Select product options for IDs.
Details
Highlights
- 2 amp power/ground contact rating
- EMLB power/ground contacts help control static discharge
- Allows "hot board" replacement
- Available in vertical and right angle configurations

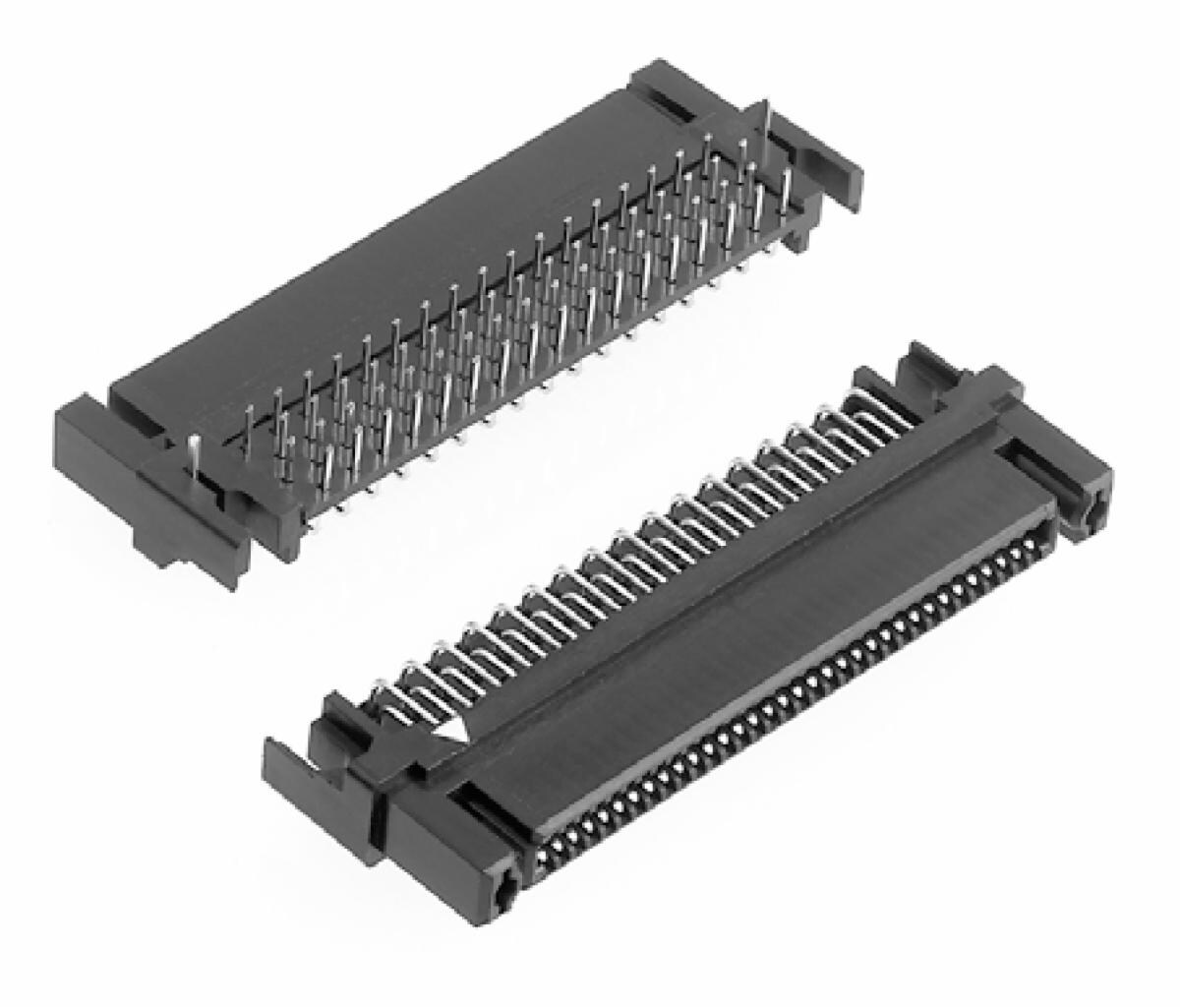

The 3M™ Pak 50 Power Ground Socket, P50 Series is a board-to-board connecting socket featuring power/ground contacts for simultaneous power delivery and signal transmission. With a 2 amp power/ground contact rating, the .050" board mount socket is excellent for maximizing signal contact in high current applications.
EMLB power/ground contacts control static discharge and allow "hot board" replacement. The 3M™ Pak 50 Power Ground Socket, P50 Series is available in vertical and right angle configurations.
Specifications
| Applications | Board-to-board Connecting |
| Connector Style | Receptacle |
| Contact Base Material | Phosphor Bronze |
| Insulation Material | Glass Filled Nylon |
| Insulation Resistance | >1x10⁹ Ω @ 500 VDC |
| Number of Contact Rows | 2 |
| Number of Contacts | 20 , 30 , 40 , 68 , 80 |
| Pitch (Metric) | 0.05 mm |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-2052 |
Resources

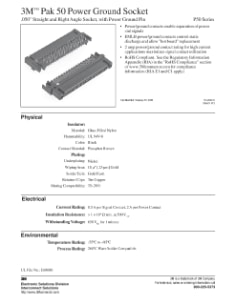

3M™ .050 in. PwrGrd. Skt.,.050"Strt.& RA,w/Pwr.Grd.Pin,TS2052Data Sheets
(PDF, 946KB)
3M™ Pak 50 B2B Connector, P50 Series Socket & Plug PDSData Sheets
(PDF, 105KB)
