3M™ Mini Delta Ribbon (MDR), X102XX-55X3XX, 102 Series
- | Select product options for IDs.
Details
Highlights
- Wiper-on-wiper contact for reliable repetitive plugging
- Surfacemount compatible PCT insulator material
- Ground lock PCB retention
- Interface latch design for connection stability
- MDR digital LCD interface as a 20 or 26 contact connector
- Contacts: 14, 20, 26, 36, 40, 50 and 68
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
- For more information refer to Data Sheet TS0621 (TS-0621)

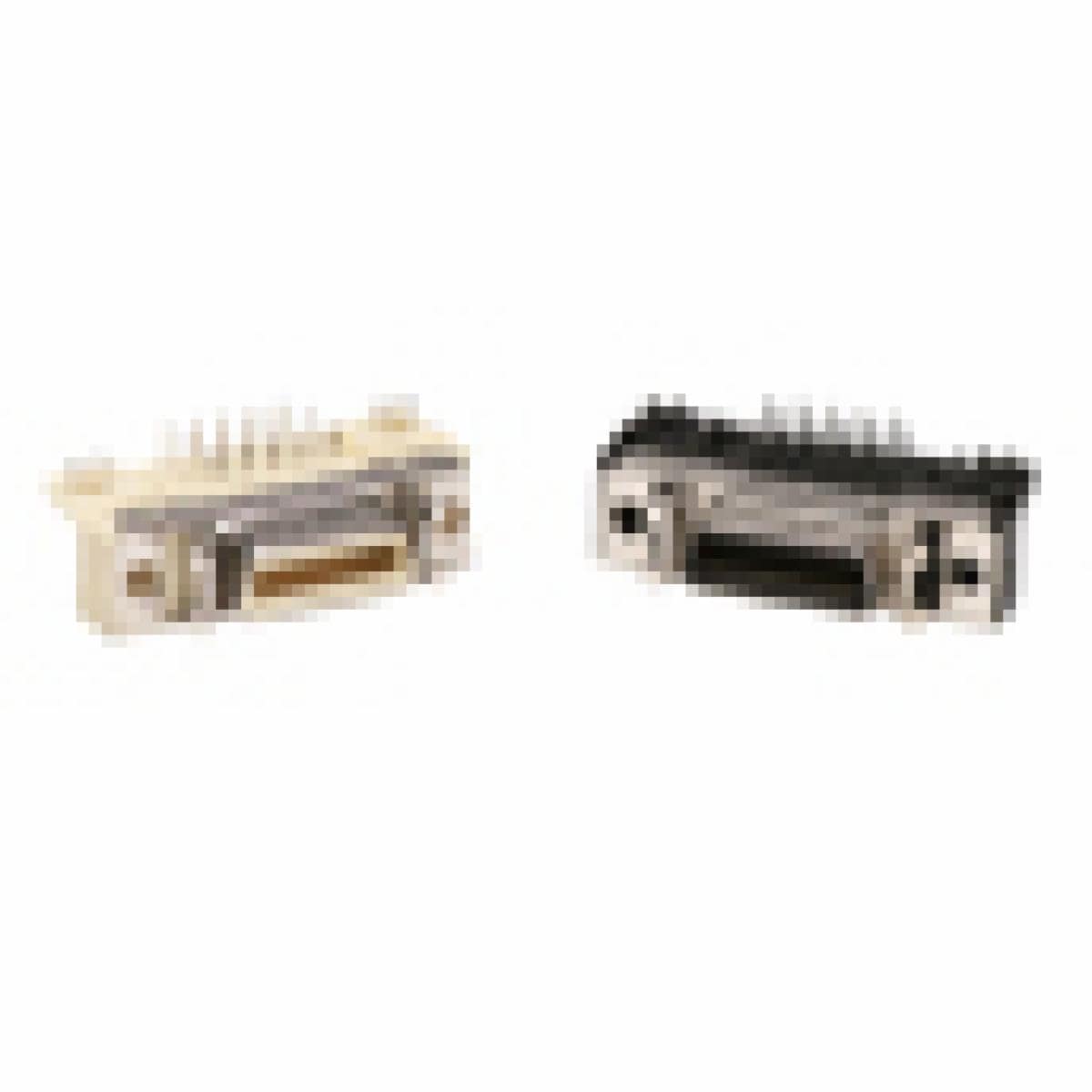

Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body
Specifications
| Applications | Connection Stability, EMI Shielding, High-density Mounting, Repetitive Mating & Unmating |
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Metric) | 1.27 μm, 2.54 μm |
| Current Rating | 1.0 |
| Features | PCB Retention |
| Insulation Material | Glass Reinforced Polyester (PCT) |
| Markings | 3M Logo and Part Number |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 0.2 µm, 0.76 μm |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Mounting Type | Boardmount |
| Number of Contact Rows | 2 |
| Number of Contacts | 14 , 20 , 26 , 36 , 40 , 50 , 68 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Pitch (Metric) | 1.27 mm |
| Product Usage | Electronic Devices, Boardmount |
| Shell Material | Steel |
| Shell Plating | Nickel |
| Specifications Met | UL 94V-0, RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-0621 |
| Termination Method | Solder |
Resources
3M™ MDR,.050" BM,Thru-Hole,RA Receptacle,Shielded,TS0621Data Sheets
(PDF, 502KB)
