3M™ HDC Socket, HDC Series
- | Select product options for IDs.
Details
Highlights
- Ideal for parallel four-row PCB stacking
- Press-Fit tail requires only flat push tool for installation
- Mates with four-row single-bay headers and plugs
- Optional feed-through tails
.100" Vertical, PCB/Backplane, Solder Tail or Press-Fit
Specifications
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Current Rating | 3.0 |
| Features | Mating Guide |
| Flammability | UL 94V-0 |
| Insulation Color | Black |
| Insulation Material | Glass Filled Thermoplastic (LCP) |
| Insulation Resistance | >1x10³ MΩ @ 500 VDC |
| Markings | Part Number and Date Code |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 0.076 µm, 0.76 µm |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Mounting Type | Boardmount |
| Number of Contact Rows | 4 |
| Number of Contacts | 128 , 160 , 200 |
| PCB Mounting Style | Through Hole |
| Packaged Form | Bulk |
| Physical Plating Property | 50 microinches [1.27 micrometers] Min. Nickel |
| Pitch (Metric) | 2.54 mm |
| Process Rating | Maximum 260 Degree C (per J-STD-020C) |
| Product Series | HDC |
| Tech Sheet Number | TS-1138 |
| Temperature Rating | -55 Degree C to +105 Degree C |
| Temperature Rating: USA | -55 Degrees C to +105 Degrees C |
| Termination Area | See Ordering Information |
| Termination Method | Solder, Press Fit |
| UnderPlating Material | 50 micro inches [1.27 micro meter] Min. Nickel |
| Wiping Area (Plating) | See Ordering Information |
| Withstanding Voltage | 900 VAC for 1 minute |
Resources

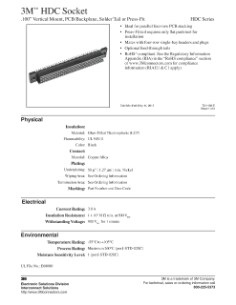

3M™ HDC Skt., .100"Vertical, Solder Tail or Press-Fit, TS1138Data Sheets
(PDF, 1008KB)
