3M™ MetPak™ 2-FB Socket, MP2 Series
- | Select product options for IDs.
Details
Highlights
- Excellent for extended card applications in demanding environments
- Offset dual-beam contact helps minimize insertion force
- Molded guide fingers help provide integrated alignment
- Alignment wafer helps maintain true position
- Available with solder or press-fit tails
- Meets IEC 61076-4-104 Futurebus+® global standard
- Mates with MP2-P inverse headers and MP2-PXXX elevated inverse headers

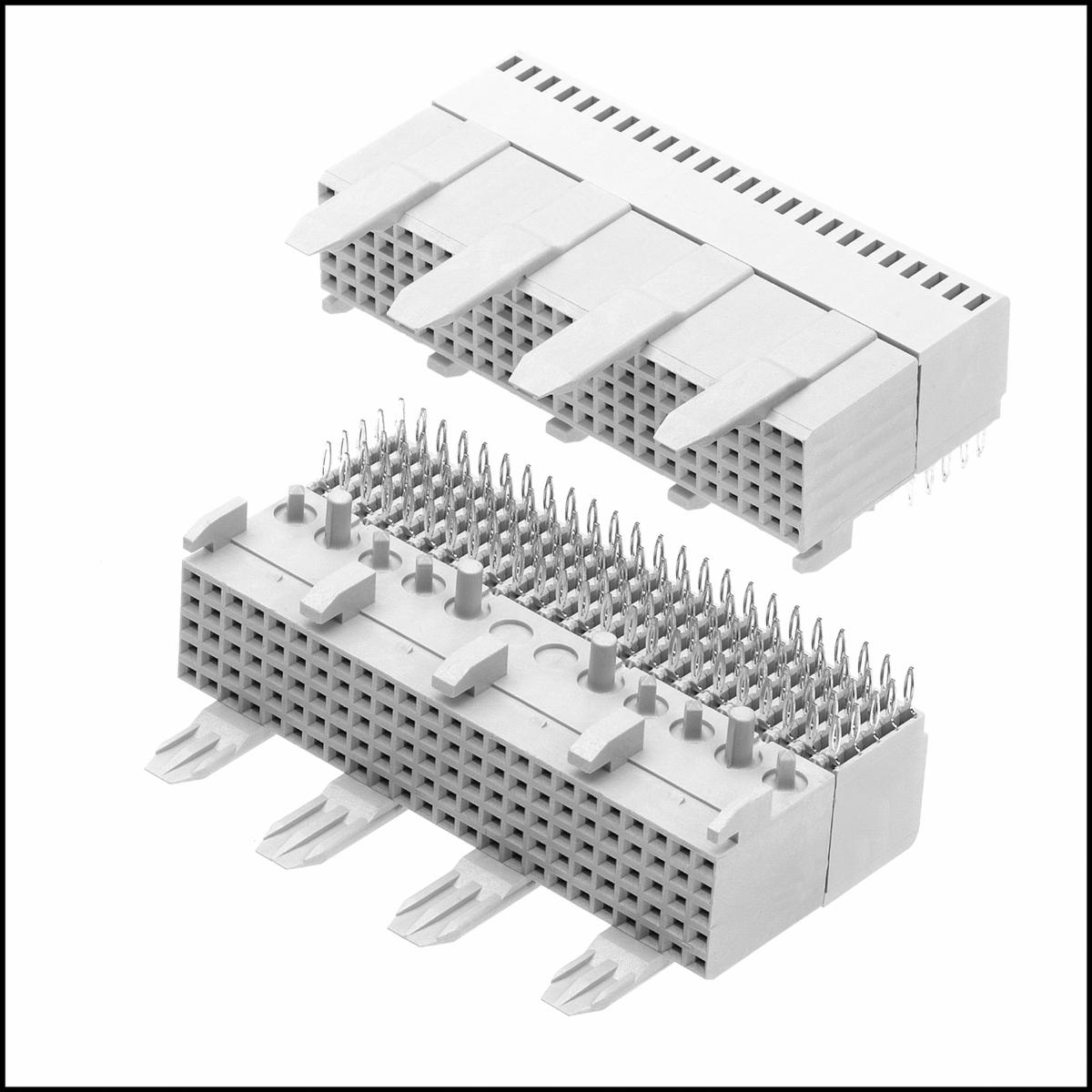

3M™ MetPak™ 2-FB Socket, MP2 Series is excellent for demanding environments. This 2 mm, 5-row, right-angle socket features dual-beam contacts to help maintain true insertion force, molded guide fingers for integrated alignment and an alignment wafer to maintain true position. End-to-end stackable connectors are available with solder or press-it tails. Press-fit includes protective push-up cap.
Compliant with IEC 61076-4-104 Futurebus+® standards, the 3M MetPak™ socket MP2 series mates with MP2-P inverse headers and MP2-PXXXE elevated inverse headers for extended card applications.
Specifications
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.5 |
| Features | Spacer, Board Guide, Board Lock |
| Flammability | UL 94V-0 |
| Insulation Color | Beige |
| Insulation Material | High Temperature LCP |
| Insulation Resistance | 10^3 MegaOhms |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 0.76 µm |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Mounting Type | Boardmount |
| Number of Contact Rows | 5 |
| Number of Contacts | 30 , 60 , 90 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Packaged Form | Bulk |
| Pitch (Metric) | 2 mm |
| Process Temperature Rating | 260 Degrees C (Profile per J-STD-020C) |
| Product Series | MP2 |
| Solder Tails | See Ordering Information |
| Tech Sheet Number | TS-1117 |
| Temperature Rating | -55 Degree C to +125 Degree C |
| Termination Method | Solder |
| UnderPlating Material | 50 micro inches [1.27 micro meter] Nickel |
| Wiping Area (Plating) | See Ordering Information |
| Withstanding Voltage | 1000 VAC |
Resources

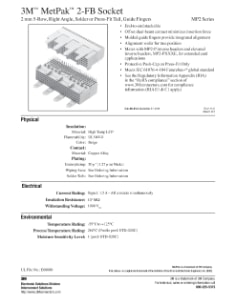

3M™ MetPak™ 2-FB Skt., 2 mm, 5 Row, Right Angle, TS1117Data Sheets
(PDF, 907KB)
