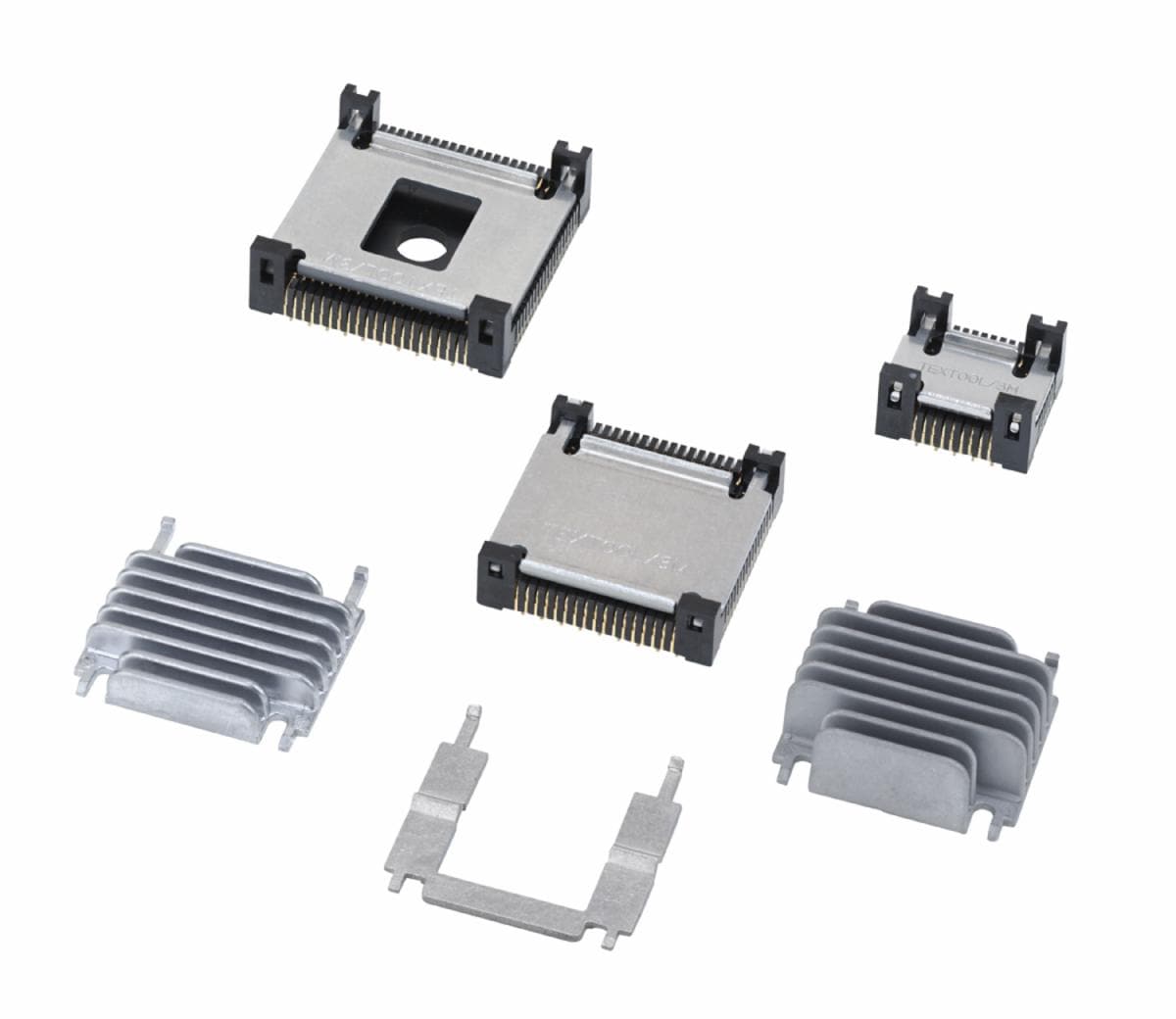

3M™ OEM LCC Sockets
- | Select product options for IDs.
Details
Highlights
- Accepts JEDEC leadless ceramic chip carriers
- Variety of lid options available only for 68 position
- U lid for I.C.E. adaptor I/O cable exit
- Heat Sink available for 68 position
- Polarizing post on bottom of socket
- No tools required for package insertion/removal
- Full contact probe-ability
- High temperature PPS plastic and BeCu contacts for rugged performance
- For more Information refer to Data Sheet TS0359 (TS-0359)

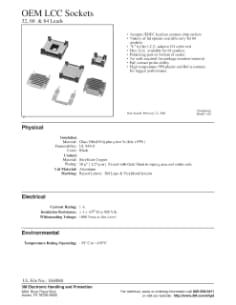

OEM Sockets (32, 68 & 84 Leads)
Specifications
| Contact Base Material | Beryllium Copper |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Metric) | 1.27 µm |
| Current Rating | 1.0 |
| Frame Style/Type | Closed |
| Insulation Material | Glass Filled Polyphenylene Sulfide (PPS) |
| Integrated Circuit Type | CLCC |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | <0.25 µm |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Number of Contact Rows | 4 |
| Number of Contacts | 32 , 68 |
| PCB Mounting Style | Through Hole |
| Pitch (Metric) | 2.54 mm |
| Tech Sheet Number | TS-0359 |
