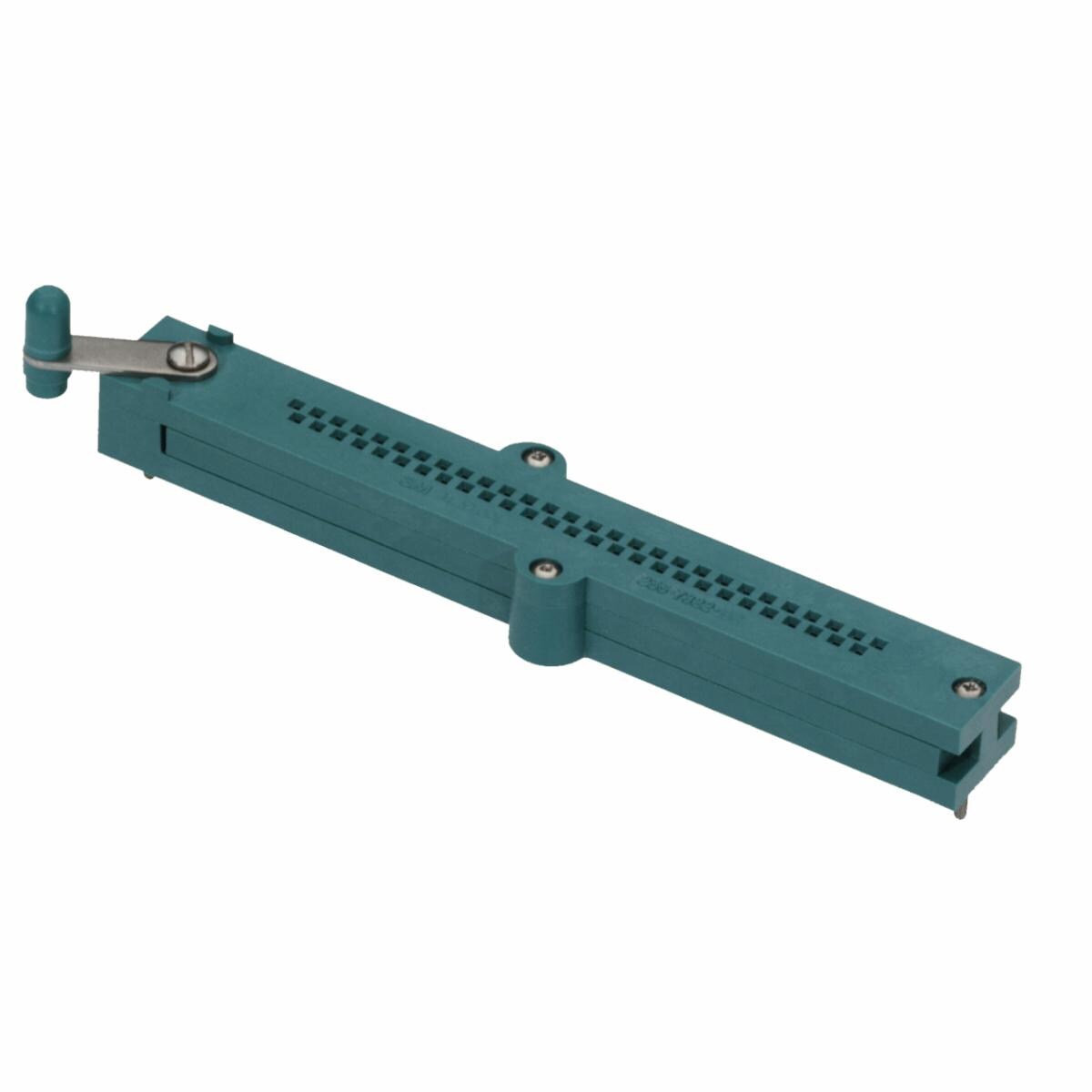

3M™ Staggered ZIP Strip Sockets, 32 Position

Name: 3M™ Staggered ZIP Strip Sockets, 32 Position
Brand: 3M

For devices with .050" (1.27 mm) lead centers formed in staggered rows with .100" (2.54 mm) between centers and rows

Socket with top-plate cover requires vertical insertion of leads

Frequently used in pairs to handle devices with standard leads on opposite sides of the package

Select product options

For devices with .050" (1.27 mm) lead centers formed in staggered rows with .100" (2.54 mm) between centers and rows
Socket with top-plate cover requires vertical insertion of leads
Frequently used in pairs to handle devices with standard leads on opposite sides of the package
Order left and right hand strips separately to obtain a complete pair
Lever actuated zero insertion force mechanism

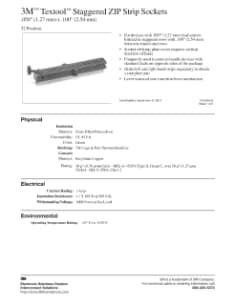

For more Information refer to Data Sheet TS0363 (TS-0363)

.050" (1.27 mm) x .100" (2.54 mm), w/ top-plate requires vertical insertion of leads

Data Sheets

(PDF, 612KB)
