3M™ Test & Burn-In SOIC Sockets
- | Select product options for IDs.
Details
Highlights
- Lid can be actuated from top or front and is compatible with automated load/unload equipment
- Compact envelope and side to side stackability maximize board density
- Tweezer slot for easy manual loading/unloading
- Lid applies 80 grams normal force per lead for maximum electrical reliability

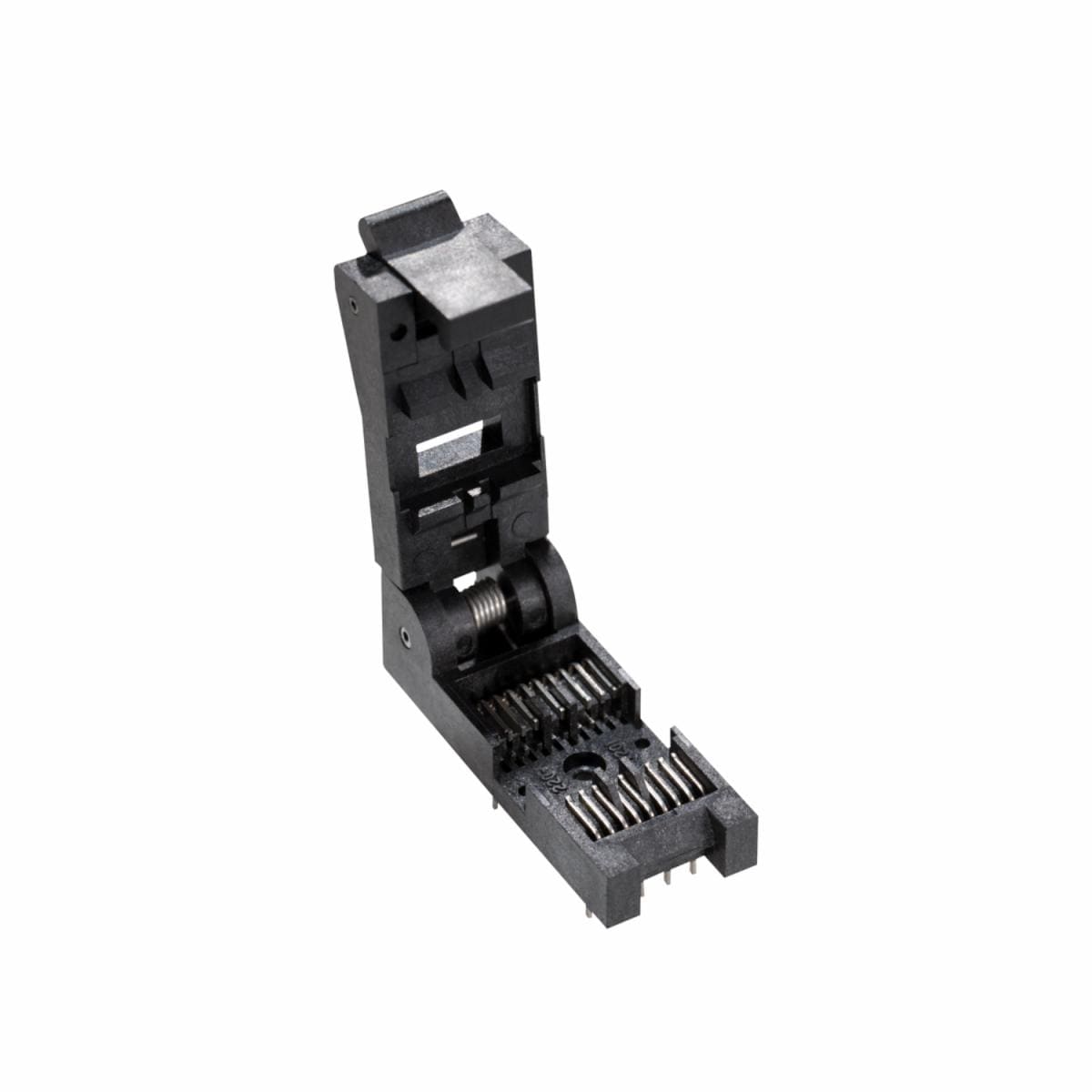

Compact envelope w/ tweezer slot for easy loading
Specifications
| Frame Style/Type | Clamshell |
| Number of Positions | 8 , 14 , 16 , 18 , 20 , 24 , 28 |
| PCB Mounting Style | Through Hole |
| Tech Sheet Number | TS-0338 |
Resources

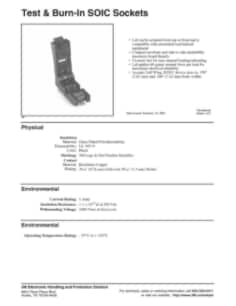

3M™ Test and Burn-in Socket CatalogData Sheets
(PDF, 387KB)
